4405072 {T}

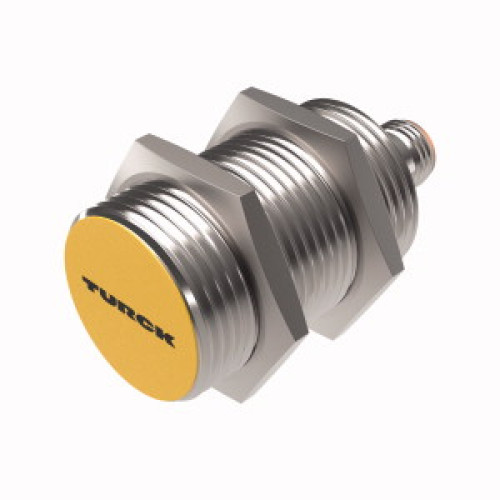

Inductive Sensor, Operating voltage 10…65 VDC, Rated switching distance

Manufacturer's No: BI10U-M30-AD4X-H1144     Manufacturer: Turck Banner
Inductive Sensor, Operating voltage 10…65 VDC, Rated switching distance

Availability Available to order

£109.35
  • Inductive Sensor
  • Operating Voltage: 10-65 VDC
  • Rated Switching Distance: 10 mm

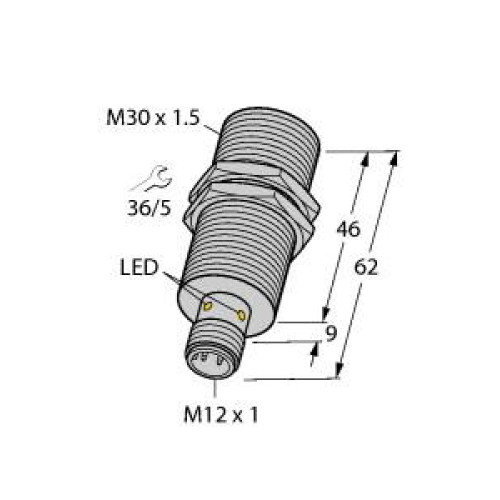

  • Threaded Tube: M30 x 1.5, Flush, Chrome-plated Brass
  • Factor 1 for all metals
  • Resistant to magnetic fields
  • Configuration: DC 2-wire, NO contact
  • Connector: M12 x 1 male
  • Voltage Range: 10-65 VDC


Product

Manufacturer Material ID -
BI10U-M30-AD4X-H1144
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Metal
Length of sensor -
62 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
10 Volt
Switching distance -
10 Millimetre
Switching frequency -
10 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Voltage type -
DC
Turck Banner

Availability Available to order

£109.35
