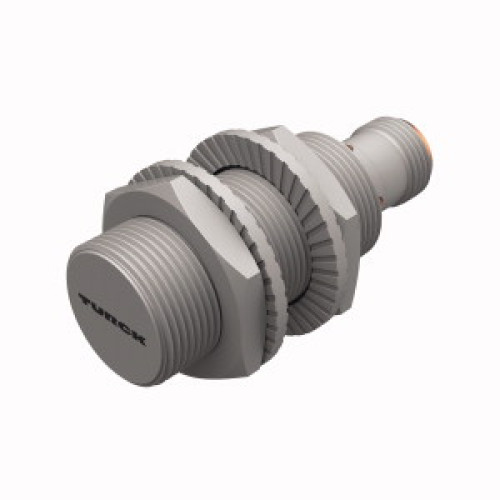

Inductive Sensor, IO-Link Communication and Configuration

Manufacturer's No: BI10U-MT18-IOL6X2-H1141     Manufacturer: Turck Banner
Inductive Sensor, IO-Link Communication and Configuration

Availability On Request

£142.04
  • Inductive Sensor
  • IO-Link Communication
  • Operating Voltage: 10-30 VDC
  • Rated Switching Distance: 10 mm

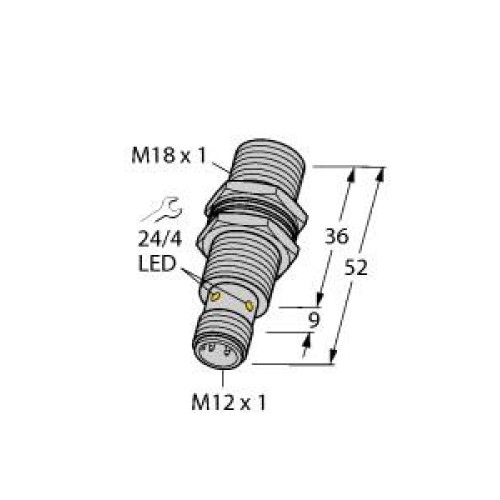

  • Flush Threaded Barrel: M18 x 1, Brass, PTFE-coated
  • Factor 1 for all metals
  • Protection Class: IP68
  • Resistant to magnetic fields
  • Large switching distance
  • DC 4-wire, M12 x 1 connector

Read more

  • Configuration and communication via IO-Link v1.1 or standard I/O
  • Electrical outputs independently configurable
  • Switching distance and hysteresis can be parametrized per output
  • Identification via 32-byte memory
  • Temperature monitoring with adjustable limits
  • Various timer and pulse monitoring functions


Product

Manufacturer Material ID -
BI10U-MT18-IOL6X2-H1141
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
52 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
10 Volt
Switching distance -
10 Millimetre
Switching frequency -
500 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Change-over contact
Type of switching output -
PNP/NPN
Voltage type -
DC
Turck Banner

Availability On Request

£142.04
