1584021 {T}

Inductive Sensor, For Use in Vehicle Board Nets, Operating voltage

Manufacturer's No: BI15-EM30-AP45XLD     Manufacturer: Turck Banner
Inductive Sensor, For Use in Vehicle Board Nets, Operating voltage

Availability Available to order

£139.73
  • Inductive Sensor for Vehicle Board Nets
  • Operating Voltage: 8.6 to 65 VDC
  • Rated Switching Distance: 15 mm

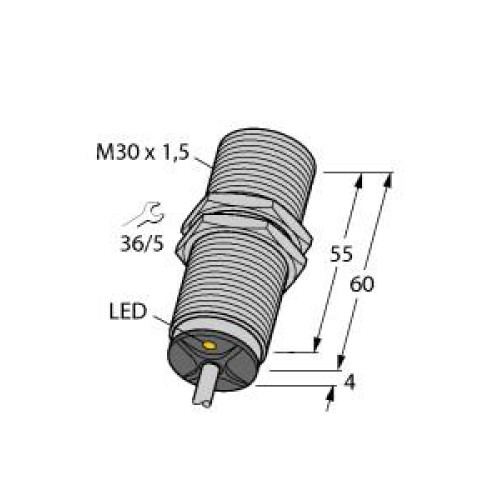

  • Flush Mounting with M30 × 1.5 Threaded Tube
  • Stainless Steel (1.4301) construction
  • Cable Length: 2 m
  • Increased Interference Immunity: 100 V/m radiated (ISO 11452-4) and 100 mA BCI (ISO 11452-2)
  • Load-dump Protection per DIN ISO 7637-2 (SAE J 113-11)
  • Extended Temperature Range
  • High Protection Class: IP68/IP69K

Read more

  • Protection against Salt Spray and Rapid Temperature Change
  • Laser Engraved Label for Permanent Legibility
  • DC 3-Wire with NO Contact
  • PNP Output
  • Cable Connection
  • E1 Type Approval from German Federal Office for Motor Vehicles


Product

Manufacturer Material ID -
BI15-EM30-AP45XLD
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Explosion safety category for dust -
Other
Explosion safety category for gas -
Other
Housing material -
Metal
Length of sensor -
64 Millimetre
Mechanical mounting condition for sensor -
Concise
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Supply voltage -
8.6 Volt
Switching distance -
15 Millimetre
Switching frequency -
500 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability Available to order

£139.73
