1535554 {T}

Inductive Sensor, With Analog Output, Operating voltage 14…30 VDC

Manufacturer's No: BI15-M30-LI-EXI     Manufacturer: Turck Banner
Inductive Sensor, With Analog Output, Operating voltage 14…30 VDC

Availability Available to order

£284.31
  • Inductive sensor
  • Analog output
  • Operating voltage: 14-30 VDC
  • Measuring range: 2mm - 10mm
  • Flush type

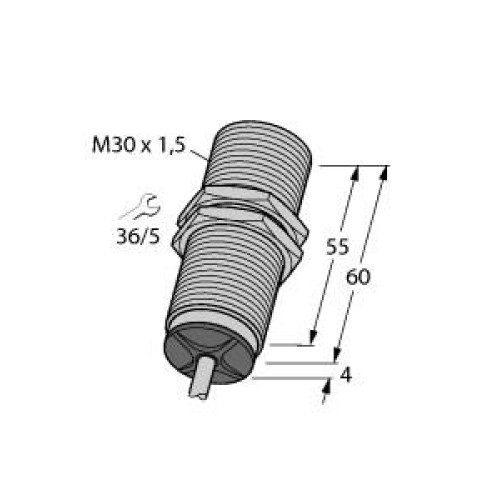

  • M30 x 1.5 threaded tube
  • Material: Chrome-plated brass
  • 2-wire system
  • Output: 4-20 mA
  • Cable length: 2m

Read more

  • ATEX category II 1 G for Ex-zone 0
  • ATEX category II 2 D for Ex-zone 21


Product

Manufacturer Material ID -
BI15-M30-LI-EXI
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Housing material -
Other
Length of sensor -
64 Millimetre
Limiting frequency -
140 Hertz
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
2 Millimetre
Mechanical mounting condition for sensor -
Concise
Operating voltage -
14 Volt
Relative linearity deflection -
5 Percentage
Supply voltage -
14 Volt
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Cable
Turck Banner

Availability Available to order

£284.31
