4030021 {T}

Inductive Sensor, With Extended Temperature Range, Operating voltage Nom. 8.2

Manufacturer's No: BI2-P12-Y1X/S97     Manufacturer: Turck Banner
Inductive Sensor, With Extended Temperature Range, Operating voltage Nom. 8.2

Availability Available to order

£88.97
  • Inductive sensor with extended temperature range
  • Rated switching distance: 2 mm
  • Flush mounting style
  • Cable length: 2 m

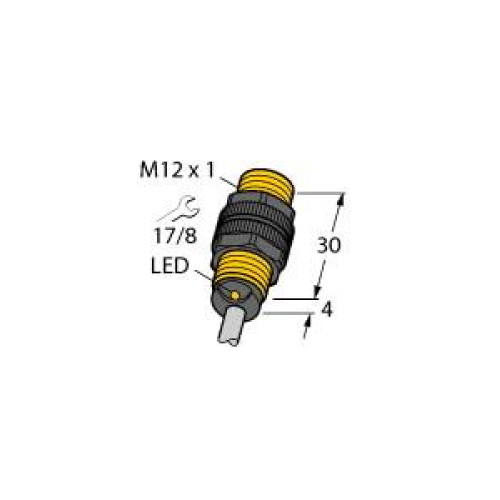

  • Threaded barrel: M12 x 1, made of plastic (PA12-GF30)
  • Temperature range: up to -40°C
  • DC 2-wire, nominal voltage: 8.2 VDC
  • Output according to DIN EN 60947-5-6 (NAMUR) standards
  • Cable connection
  • ATEX category II 2 G, Ex Zone 1

Read more

  • ATEX category II 1 D, Ex Zone 20 for temperatures up to -25°C
  • SIL 2 (Low Demand Mode) according to IEC 61508, PL c according to ISO 13849-1 at HFT0
  • SIL 3 (All Demand Mode) according to IEC 61508, PL e according to ISO 13849-1 with redundant configuration HTF1


Product

Manufacturer Material ID -
BI2-P12-Y1X/S97
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 2G
Housing material -
Plastic
Length of sensor -
34 Millimetre
Mechanical mounting condition for sensor -
Concise
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
None
Switching distance -
2 Millimetre
Switching frequency -
5000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switching output -
NAMUR
Voltage type -
DC
Turck Banner

Availability Available to order

£88.97
