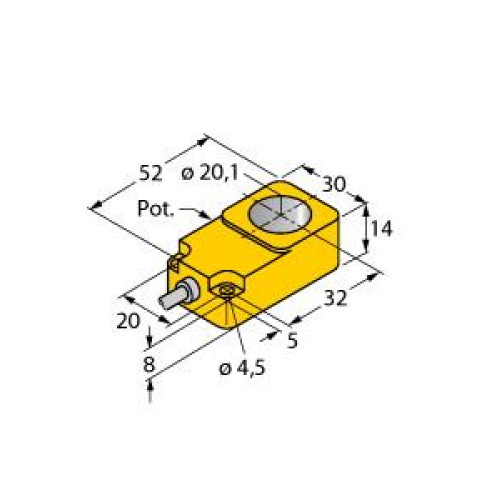

1535546

Inductive Sensor, With Analog Output

Manufacturer's No: BI20R-Q14-LU     Manufacturer: Turck Banner
Inductive Sensor, With Analog Output

Availability On Request

£349.22
  • Inductive sensor with analog output
  • Operating voltage: 15-30 VDC
  • Cable length: 2 m
  • Rectangular shape, height: 14 mm
  • Material: Plastic (PBT-GF30-V0)
  • Sensitivity adjusted via potentiometer
  • Suitable for thickness measurement (e.g. screws, rivets, rods)
  • Path measurement with conical actuator: Measuring range adjustable via cone length
  • 3-wire system
  • Analog output: 0-10 V

Read more

  • Cable connection


Product

Manufacturer Material ID -
BI20R-Q14-LU
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP67
Height of sensor -
14 Millimetre
Housing material -
Plastic
Length of sensor -
52 Millimetre
Limiting frequency -
80 Hertz
Material of cable sheath -
Polyurethane (PUR)
Operating voltage -
15 Volt
Supply voltage -
15 Volt
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Cable
Width sensor -
30 Millimetre
Turck Banner

Availability On Request

£349.22
