1635248

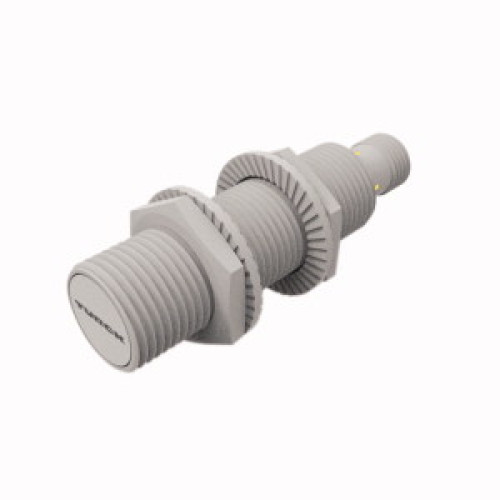

Inductive Sensor

Manufacturer's No: BI5U-MT18E-AP6X-H1141     Manufacturer: Turck Banner
Inductive Sensor

Availability On Request

£108.51
  • Inductive Sensor
  • Operating Voltage: 10-30 VDC
  • Rated Switching Distance: 5 mm

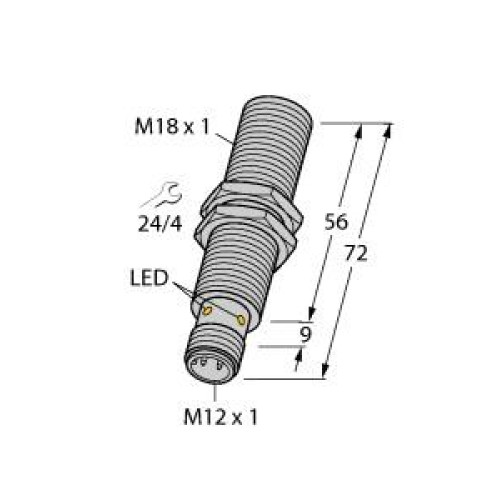

  • Type: Flush, Threaded barrel, M18 x 1, Long version
  • Material: Brass, PTFE-coated
  • Factor 1 for all metals
  • Protection Class: IP68
  • Resistant to magnetic fields
  • Extended temperature range
  • High switching frequency

Read more

  • Configuration: DC 3-wire, NO contact, PNP output
  • Connector: M12 x 1 male connector


Product

Manufacturer Material ID -
BI5U-MT18E-AP6X-H1141
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
72 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
10 Volt
Switching distance -
5 Millimetre
Switching frequency -
2500 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability On Request

£108.51
