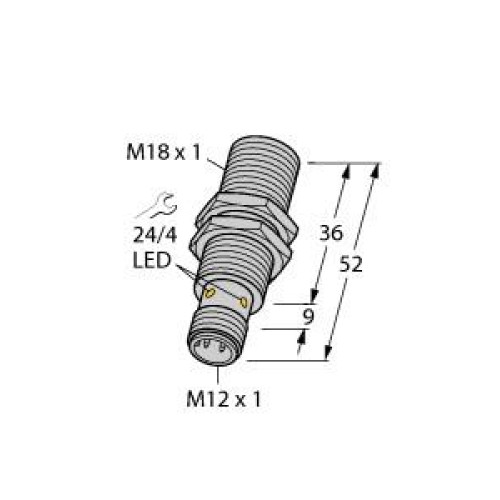

Inductive Sensor, For Use in Vehicle Board Nets

Manufacturer's No: BI8-EM18-AP45XLD-H1141     Manufacturer: Turck Banner
Inductive Sensor, For Use in Vehicle Board Nets

Availability On Request

£116.16
  • Inductive Sensor for Vehicle Board Nets
  • Operating Voltage: 8.6 to 65 VDC
  • Rated Switching Distance: 8 mm
  • Flush Threaded Barrel: M18 x 1, Stainless Steel 1.4301
  • Increased Interference Immunity: 100 V/m radiated acc. to ISO 11452-4, 100 mA BCI acc. to ISO 11452-2
  • Load-Dump Protection acc. to DIN ISO 7637-2 (SAE J 113-11)
  • Extended Temperature Range
  • High Protection Class: IP68/IP69K
  • Protection Against Salt Spray and Rapid Temperature Change
  • Laser Engraved Label, Permanently Legible

Read more

  • DC 3-Wire, 8.4 to 65 VDC, NO Contact, PNP Output
  • M12 x 1 Male Connector
  • E1 Type Approval from German Federal Office for Motor Vehicles


Product

Manufacturer Material ID -
BI8-EM18-AP45XLD-H1141
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Surface protection -
UN
Working temperature -
- Degrees celsius
Impact strength -
UN
Max. conductor cross section -
- Square millimetre
Degree of protection (NEMA) -
UN
Mounting method -
Surface mounted (plaster)
Colour -
Other
Width -
300 Millimetre
Depth -
80 Millimetre
Rated insulation voltage Ui -
0 Volt
Length -
300 Millimetre
Type of inlet -
Swivel
Circuit integrity -
None
Material -
Other
Number of inlets -
0
Cover attachment -
Snapped on
Degree of protection (IP) -
IP66
For Ex-zone gas -
None
For Ex-Zone dust -
None
Plate thickness cabinet -
15 Millimetre
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Explosion safety category for dust -
Other
Explosion safety category for gas -
Other
Housing material -
Metal
Length of sensor -
52 Millimetre
Mechanical mounting condition for sensor -
Concise
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Supply voltage -
8.6 Volt
Switching distance -
8 Millimetre
Switching frequency -
500 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
