1662006

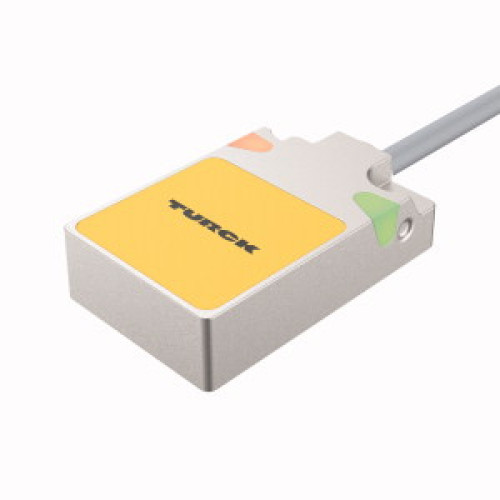

Inductive Sensor, With Extended Switching Distance

Manufacturer's No: BI8U-Q08-AP6X2     Manufacturer: Turck Banner
Inductive Sensor, With Extended Switching Distance

Availability On Request

£104.69
  • Inductive sensor with extended switching distance
  • Operating voltage: 10-30 VDC
  • Rated switching distance: 8 mm
  • Flush mountable, rectangular shape with a height of 8 mm
  • Active face on top
  • Made of metal (Zamak) with nickel-plating
  • Factor 1 for all metals
  • Increased switching distance for enhanced performance
  • Protection class: IP68, resistant to magnetic fields
  • Can be mounted on metal surfaces

Read more

  • DC 3-wire sensor with NO contact
  • PNP output
  • Cable length: 2 m
  • Cable connection


Product

Manufacturer Material ID -
BI8U-Q08-AP6X2
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Coating housing -
Nickel-plated
Construction type housing -
Cuboid
Height of sensor -
8 Millimetre
Housing material -
Metal
Length of sensor -
32 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
10 Volt
Switching distance -
8 Millimetre
Switching frequency -
250 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
20 Millimetre
Turck Banner

Availability On Request

£104.69
