2CMA103571R1000

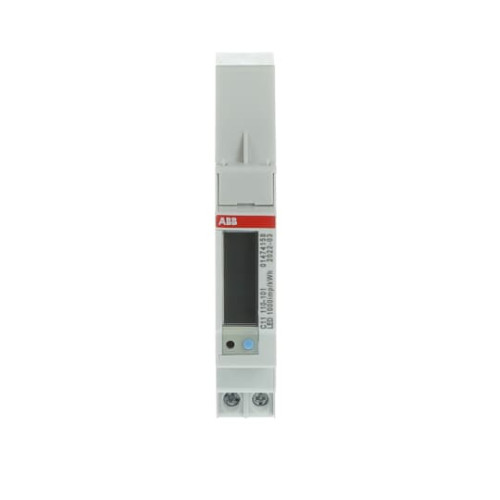

C11 110-101, Energy meter'Steel', None, Single-phase, 5 A

Manufacturer's No: C11110100C11110300     Manufacturer: ABB
C11 110-101, Energy meter'Steel', None, Single-phase, 5 A

Availability Back Order

£64.70
  • Model: C11 110-101
  • Type: Energy Meter
  • Material: Steel
  • Phase: Single-phase
  • Current Rating: 5 A
  • Application: Residential use in single or multi-family houses, standalone applications
  • System Compatibility: Four-wire system
  • Measurement: Active energy
  • Output: One output for pulses or alarm
  • Accuracy Class: 1.0 (Class B for MID meters)

Read more

  • Standards: IEC approved, MID approved, verified
  • Pulse Rate: 1000 imp/kWh


Product

Manufacturer Material ID -
C11110100C11110300
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
90283011
Country of Origin -
CN
UNSPSC -
41113600

Technical Specification

Tariff control -
UN
Nominal voltage (Un) L-L -
- Volt
Degree of protection (NEMA) -
UN
Model -
Direct measurement
Suitable for -
Purchase
Type of indication -
Digital
Frequency -
50 Hertz
Degree of protection (IP) -
IP20
Type of interface -
None
Energy type -
Effective power
Pulse rate -
1000 Pulse constant
Nominal voltage (Un) N-L -
230 Volt
Accuracy class -
B
Approval -
Measuring Instruments Directive
Calibrated -
Degree of protection (IP rating) -
IP20
Depth -
65 Millimetre
Escapement mechanism -
Height -
26.5 Millimetre
Interface type -
None
Max. current (Imax) -
40 Ampere
Mounting method -
DRA (DIN-rail adapter)
Nominal current (In) -
40 Ampere
Number of positions total (counter) -
6
Pole type -
Single phase
Power consumption -
0.22 Watt
Pulse output -
Electrical
Pulse type -
S0
Tariff type -
One-tariff
Type of indicator -
Digital
Type of meter -
Electronic
Width -
17.5 Millimetre
Width in number of modular spacings -
1
ABB

Availability Back Order

£64.70
