2CMA103574R1000

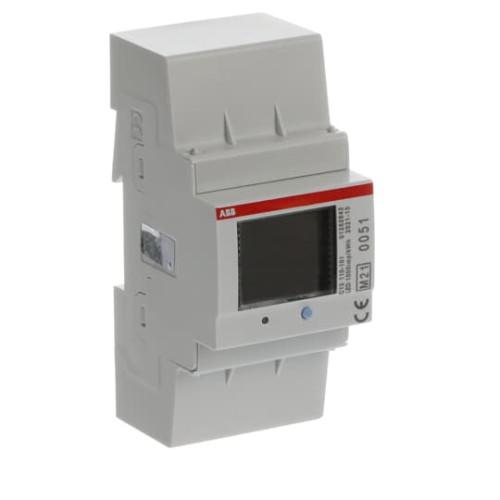

C13 110-101, Energy meter'Steel', None, Three-phase, 5 A

Manufacturer's No: C13110100     Manufacturer: ABB
C13 110-101, Energy meter'Steel', None, Three-phase, 5 A

Availability Available to order

£144.34
  • Model: C13 110-101
  • Energy Meter Type: Three-phase
  • Current Rating: 5 A
  • Application: Residential (single or multi-family houses) or stand-alone
  • System Compatibility: Four-wire system
  • Instrumentation: Direct connected for active energy
  • Output: One output for pulses or alarm
  • Accuracy Class: 1.0 (Class B for MID meters)
  • Standards: IEC approved, MID approved, and verified
  • Pulse Rate: 1000 imp/kWh


Product

Manufacturer Material ID -
C13110100
Net Weight -
2.29kg

Additional Product Information

Commodity Code -
90283019
Country of Origin -
IT
UNSPSC -
39122330

Technical Specification

Accuracy class -
B
Approval -
Measuring Instruments Directive
Calibrated -
Degree of protection (IP rating) -
IP20
Depth -
65 Millimetre
Escapement mechanism -
Height -
26.5 Millimetre
Interface type -
None
Max. current (Imax) -
40 Ampere
Mounting method -
DRA (DIN-rail adapter)
Nominal current (In) -
40 Ampere
Number of positions total (counter) -
7
Pole type -
Four conductor
Power consumption -
0.72 Watt
Pulse output -
Electrical
Pulse type -
S0
Tariff type -
One-tariff
Type of indicator -
Digital
Type of meter -
Electronic
Width -
54 Millimetre
Width in number of modular spacings -
3
ABB

Availability Available to order

£144.34
