1SFA619200R1076

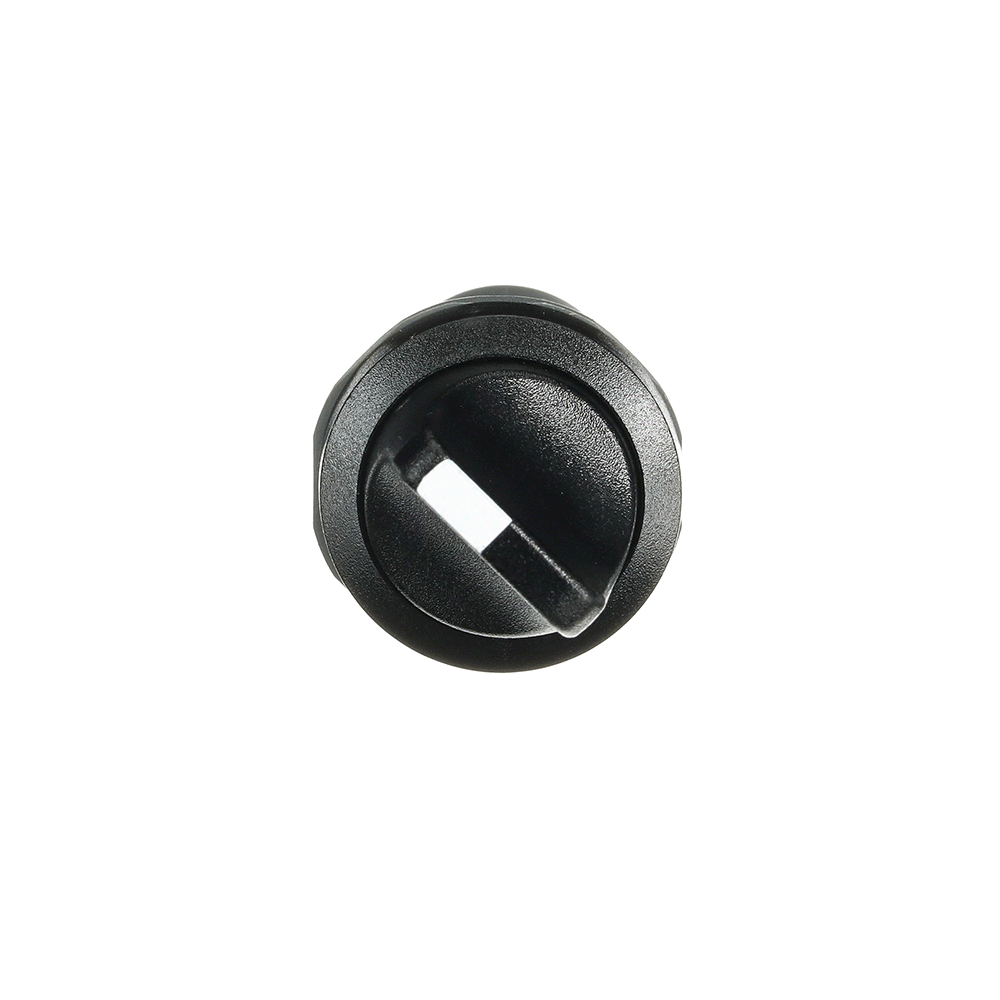

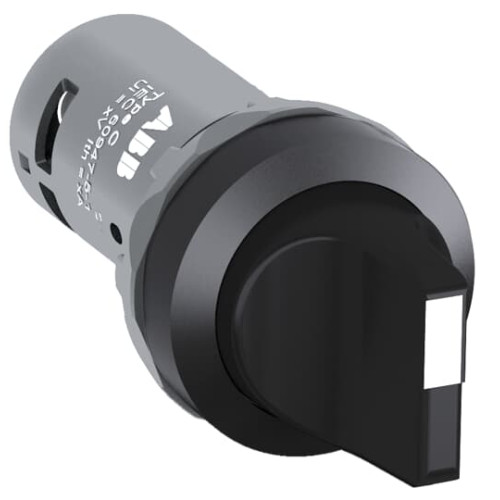

C2SS1-10B-11 Selector Switch

Manufacturer's No: C2SS1-10B-11     Manufacturer: ABB
C2SS1-10B-11 Selector Switch

Availability Back Order

£20.24
  • Model: C2SS1-10B-11 Selector Switch
  • Type: 2-position Maintained Selector Switch
  • Design: Compact with short black handle
  • Illumination: Non-illuminated
  • Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
  • Voltage Rating: 24V to 300V
  • Material: Black Plastic
  • High dust and water resistance
  • Part of ABB's efficient compact range
  • Reduces installation time and cost


Product

Manufacturer Material ID -
C2SS1-10B-11
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
8536508090
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Supply voltage -
- Volt
Degree of protection (IP) -
IP67
Colour button -
Black
Colour front ring -
Black
Degree of protection (IP rating) -
IP66
Degree of protection (NEMA) -
Other
Height opening -
0 Millimetre
Hole diameter -
22 Millimetre
Material front ring -
Plastic
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of switch positions -
2
Power loss -
5 Watt
Switching function latching -
Type of control element -
Long turning handle
Type of electric connection -
Screw connection
Width opening -
0 Millimetre
With front ring -
ABB
