1SVR740850R0300

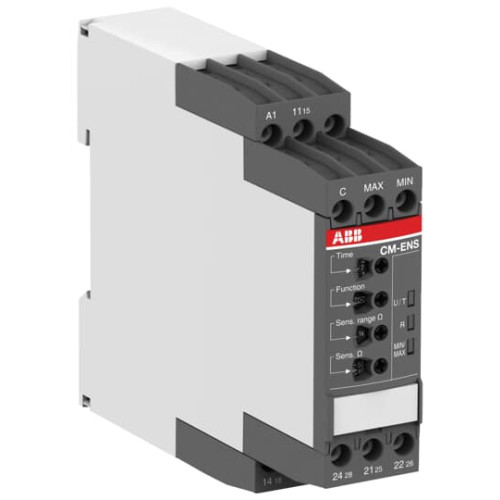

CM-ENS.31P Liquid level monitoring relay 2c/o, sensitivity 0.1-1000kOhm

Manufacturer's No: CM-ENS.31P     Manufacturer: ABB
CM-ENS.31P Liquid level monitoring relay 2c/o, sensitivity 0.1-1000kOhm

Availability On Request

£174.55
The CM-ENS.31P belongs to the CM liquid level monitoring relay range. It operates with a rated control supply voltage of 24 - 240 V AC/DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It monitors liquid levels of conductive fluids and protects pumps against dry running or tanks against overflow. The working principle as well as the sensitivity can be selected via front-face potentiometers. Furthermore, an ON-delay or an OFF-delay can be adjusted within a range of 0.1 to 10 s. Several electrodes and a sealable transparent cover for protection against unauthorized changes are available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.


Product

Manufacturer Material ID -
CM-ENS.31P
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
AC/DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
Cascadable -
Depth -
103.7 Millimetre
Height -
85.6 Millimetre
Max. permitted off-delay time -
0 Second
Max. permitted operate delay time -
30 Second
Min. adjustable off-delay time -
0 Second
Min. adjustable operate delay time -
0 Second
Number of inputs for electrodes -
3
Operating voltage at AC 50 Hz -
230 Volt
Operating voltage at AC 60 Hz -
230 Volt
Physical measurement principle -
Conductive
Rated switch current -
4 Ampere
Response value sensitivity adjustable -
Supply voltage AC 50 Hz -
24 Volt
Supply voltage AC 60 Hz -
24 Volt
Supply voltage DC -
24 Volt
Type of electric connection -
Spring clamp connection
Voltage type (operating voltage) -
AC
Voltage type of supply voltage -
AC/DC
Width -
22.5 Millimetre
ABB

Availability On Request

£174.55
