1SVR730830R0500

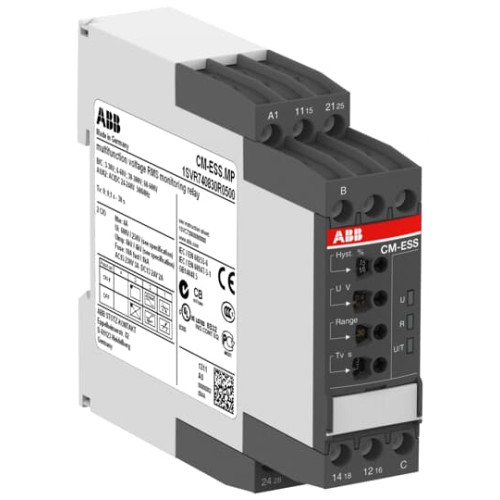

CM-ESS.MS Voltage monitoring relay 2c/o, B-C=3-600VRMS, 24-240VAC/DC

Manufacturer's No: CM-ESS.MS     Manufacturer: ABB
CM-ESS.MS Voltage monitoring relay 2c/o, B-C=3-600VRMS, 24-240VAC/DC

Availability On Request

£240.77
  • Voltage monitoring relay CM-ESS.MS with 2 c/o (SPDT) output
  • Operating voltage range: 24-240 V AC / DC
  • Contacts rated at 250 V / 4 A
  • RMS measuring principle for DC and AC voltages
  • Measuring ranges: 3-30 V, 6-60 V, 30-300 V, 60-600 V
  • Features over- or undervoltage monitoring
  • Selectable open- or closed-circuit operating principle
  • Adjustable hysteresis range: 3-30% of threshold value
  • Tripping delay and start-up delay adjustable from instantaneous to 30 s
  • Sealable transparent cover for protection against unauthorized changes

Read more

  • Screw connection technology with double-chamber cage connection terminals


Product

Manufacturer Material ID -
CM-ESS.MS
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Voltage measurement range 2 -
- Volt
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Width -
22.5 Millimetre
Height -
85.6 Millimetre
Depth -
103.7 Millimetre
Single-phase under voltage possible -
Single-phase over voltage possible -
Single-phase hysteresis possible -
Contains function DC-under voltage -
Contains function DC-over voltage -
Contains function DC-voltage hysteresis -
Type of voltage measurement range -
AC/DC
Type of electric connection -
Screw connection
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Voltage measurement range 1 -
3 Volt
Max. permitted delay-on energization time -
0 Second
Min. adjustable delay-on energization time -
0 Second
Max. permitted off-delay time -
30 Second
Min. adjustable off-delay time -
0.1 Second
Response value voltage -
3 Volt
Voltage type for actuating -
AC/DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
ABB

Availability On Request

£240.77
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
