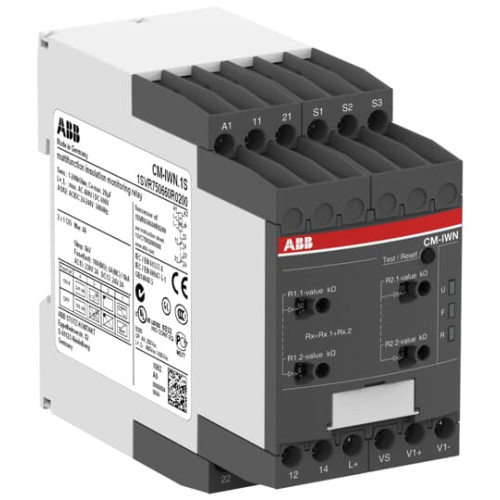

CM-IWN.1P Insulation monitoring relay 2c/o, 1-100kOhm,2-200kOhm, 24-240VAC/DC

Manufacturer's No: CM-IWN.1P     Manufacturer: ABB
CM-IWN.1P Insulation monitoring relay 2c/o, 1-100kOhm,2-200kOhm, 24-240VAC/DC

Availability On Request

£716.13
  • Model: CM-IWN.1P
  • Insulation monitoring relay
  • Monitoring insulation resistance in IT AC systems
  • Suitable for IT AC systems with galvanically connected DC circuits
  • Also suitable for unearthed IT DC systems up to 400V AC and 600V DC
  • Measuring range: 1-100kOhm, 2-200kOhm
  • Voltage range: 24-240VAC/DC
  • Can be extended up to 690V AC and 1000V DC with CM-IVN coupling unit
  • Configurable for various applications
  • Multi-functional design


Product

Manufacturer Material ID -
CM-IWN.1P
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Response value impedance 2 -
- Kilo-Ohm
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Width -
45 Millimetre
Function -
For mixed system
Height -
85.6 Millimetre
Depth -
104.8 Millimetre
Rated frequency -
15 Hertz
Line capacity -
20 Micro-Farad
Error registration possible -
Type of electric connection -
Spring clamp connection
Rated voltage -
0 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Response value impedance 1 -
1 Kilo-Ohm
Voltage type for actuating -
AC/DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
External power supply required -
Operating voltage at AC 50 Hz -
230 Volt
Operating voltage at AC 60 Hz -
230 Volt
Rated operation frequency -
15 Hertz
Rated switch current -
3 Ampere
Supply voltage AC 50 Hz -
24 Volt
Supply voltage AC 60 Hz -
24 Volt
Supply voltage DC -
24 Volt
Voltage measurement range -
0 Volt
Voltage type (operating voltage) -
AC
Voltage type of supply voltage -
AC/DC
