1SVR740660R0100

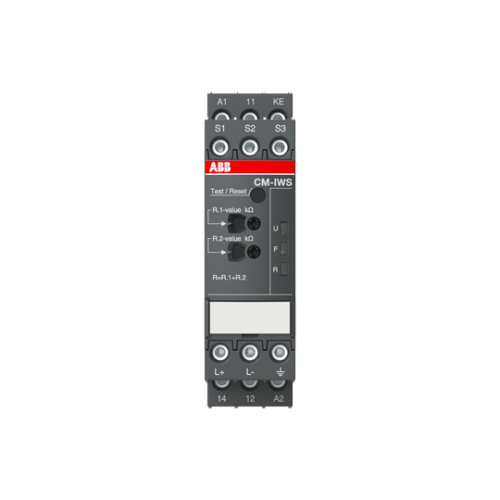

CM-IWS.1P Insulation monitoring relay 1c/o, 1-100kOhm, 24-240VAC/DC

Manufacturer's No: CM-IWS.1P     Manufacturer: ABB
CM-IWS.1P Insulation monitoring relay 1c/o, 1-100kOhm, 24-240VAC/DC

Availability On Request

£318.25
CM-IWS.1P Insulation monitoring relay 1c/o, 1-100kOhm, 24-240VAC/DC


Product

Manufacturer Material ID -
CM-IWS.1P
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Response value impedance 2 -
- Kilo-Ohm
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Width -
22.5 Millimetre
Function -
For mixed system
Height -
85.6 Millimetre
Depth -
103.7 Millimetre
Rated frequency -
15 Hertz
Line capacity -
10 Micro-Farad
Error registration possible -
Type of electric connection -
Spring clamp connection
Rated voltage -
0 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Response value impedance 1 -
1 Kilo-Ohm
Voltage type for actuating -
AC/DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
1
External power supply required -
Operating voltage at AC 50 Hz -
230 Volt
Operating voltage at AC 60 Hz -
230 Volt
Rated operation frequency -
15 Hertz
Rated switch current -
3 Ampere
Supply voltage AC 50 Hz -
24 Volt
Supply voltage AC 60 Hz -
24 Volt
Supply voltage DC -
24 Volt
Voltage measurement range -
0 Volt
Voltage type (operating voltage) -
AC
Voltage type of supply voltage -
AC/DC
ABB

Availability On Request

£318.25
