1SVR750489R8300

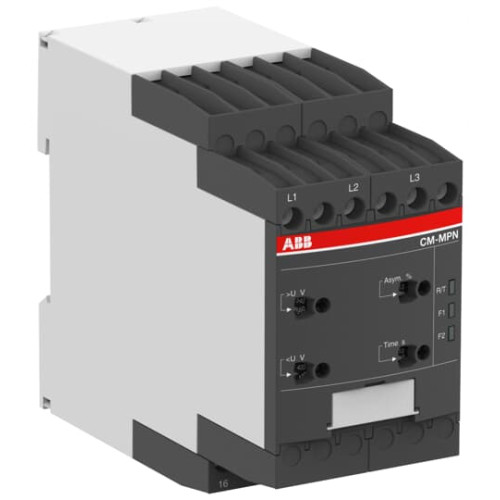

CM-MPN.72S Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x530-820VAC

Manufacturer's No: CM-MPN.72S     Manufacturer: ABB
CM-MPN.72S Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x530-820VAC

Availability On Request

£321.33
  • Three-phase monitoring relay CM-MPN.72S
  • Rated control supply voltage: 530-820 V AC 50/60 Hz
  • 2 c/o (SPDT) output with contacts rated at 250 V / 4 A
  • Monitors over/undervoltage, phase unbalance, and phase failure
  • Adjustable threshold values
  • Phase sequence monitoring and correction
  • ON or OFF tripping delay, adjustable from 0 to 30 s
  • Configurable output contacts as 1x2 c/o (SPDT) or 2x1 c/o (SPDT)
  • Sealable transparent cover for protection
  • Screw connection technology with double-chamber cage connection terminals


Product

Manufacturer Material ID -
CM-MPN.72S
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
530 Volt
Rated control supply voltage Us at AC 60HZ -
530 Volt
Width -
45 Millimetre
Height -
85.6 Millimetre
Depth -
104.8 Millimetre
Voltage measurement range -
530 Volt
Phase sequence monitoring -
Phase failure detection -
Function under voltage detection -
Function over voltage detection -
Phase imbalance monitoring -
Type of electric connection -
Screw connection
Rated control supply voltage at AC 50 Hz -
530 Volt
Rated control supply voltage at AC 60 Hz -
530 Volt
Max. permitted delay-on energization time -
0.2 Second
Min. adjustable delay-on energization time -
0.2 Second
Max. permitted off-delay time -
30 Second
Min. adjustable off-delay time -
0.1 Second
Voltage type for actuating -
AC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
ABB

Availability On Request

£321.33
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
