1SVR730700R0100

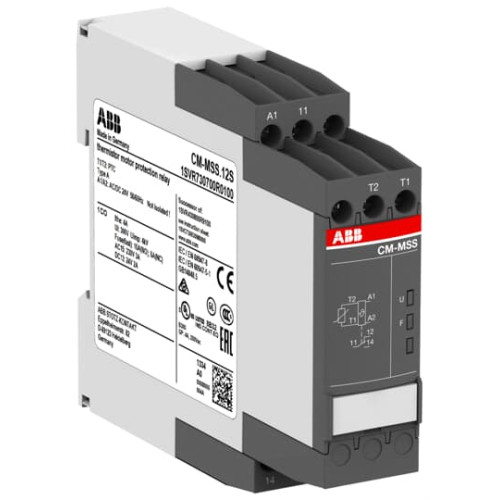

CM-MSS.12S Therm. motor protec. relay 1c/o, 24VAC/DC

Manufacturer's No: CM-MSS.12S     Manufacturer: ABB
CM-MSS.12S Therm. motor protec. relay 1c/o, 24VAC/DC

Availability On Request

£78.24
  • Model: CM-MSS.12S
  • Type: Thermistor Motor Protection Relay
  • Control Supply Voltage: 24V AC/DC
  • Output: 1 c/o (SPDT) with contacts rated at 250V / 4A
  • Sensor Circuit: Monitors PTC temperature sensors
  • Operating Principle: Closed-circuit
  • Automatic Reset after failure removal
  • Transparent sealable cover for protection
  • Screw connection technology with double-chamber cage connection terminals


Product

Manufacturer Material ID -
CM-MSS.12S
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us -
24 Volt
Width -
22.5 Millimetre
Height -
85.6 Millimetre
Depth -
103.7 Millimetre
Rated control supply voltage -
24 Volt
Number of measuring circuits -
1
Connection type auxiliary circuit -
Screw connection
Voltage type for actuating -
AC/DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
1
ABB

Availability On Request

£78.24
