1SVR730700R0200

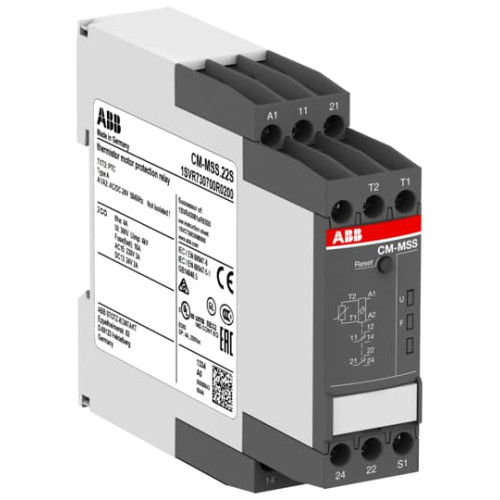

CM-MSS.22S Therm. motor protec. relay 2c/o, 24VAC/DC

Manufacturer's No: CM-MSS.22S     Manufacturer: ABB
CM-MSS.22S Therm. motor protec. relay 2c/o, 24VAC/DC

Availability On Request

£84.69
  • Model: CM-MSS.22S
  • Motor Protection Relay for thermistors
  • Rated Control Supply Voltage: 24V AC/DC
  • Output: 2 c/o (SPDT) contacts rated at 250V / 4A
  • Monitors PTC temperature sensors
  • Reset options: automatic, manual, remote
  • Sealable transparent cover for protection
  • Screw connection technology with double-chamber cage connection terminals


Product

Manufacturer Material ID -
CM-MSS.22S
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us -
24 Volt
Width -
22.5 Millimetre
Height -
85.6 Millimetre
Depth -
103.7 Millimetre
Rated control supply voltage -
24 Volt
Number of measuring circuits -
1
External reset possible -
Connection type auxiliary circuit -
Screw connection
Voltage type for actuating -
AC/DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
ABB

Availability On Request

£84.69
