1SVR550826R9100

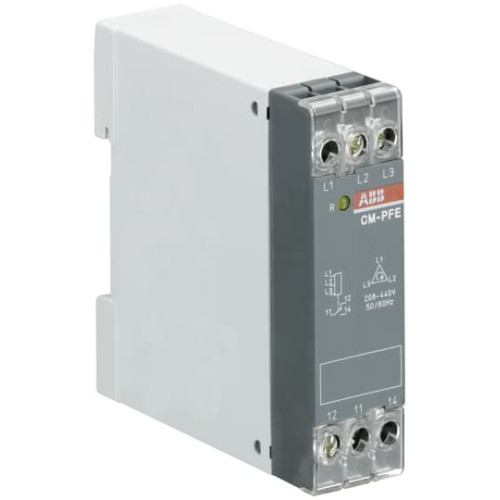

CM-PFE.2 Phase sequence monitoring relay 1c/o, L1-L2-L3=200-500VAC

Manufacturer's No: CM-PFE.2     Manufacturer: ABB
CM-PFE.2 Phase sequence monitoring relay 1c/o, L1-L2-L3=200-500VAC

Availability On Request

£91.63
Phase sequence relay CM-PFE.2, width 22.5mm, measuring range L1-L2-L3=200-500VAC, powered by measuring circuit, 1 c/o (closed circuit principle)


Product

Manufacturer Material ID -
CM-PFE.2
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
BG
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
200 Volt
Rated control supply voltage Us at AC 60HZ -
200 Volt
Width -
22.5 Millimetre
Height -
78 Millimetre
Depth -
78.5 Millimetre
Voltage measurement range -
200 Volt
Phase sequence monitoring -
Phase failure detection -
Type of electric connection -
Screw connection
Rated control supply voltage at AC 50 Hz -
200 Volt
Rated control supply voltage at AC 60 Hz -
200 Volt
Max. permitted delay-on energization time -
0.5 Second
Min. adjustable delay-on energization time -
0.5 Second
Max. permitted off-delay time -
0.5 Second
Min. adjustable off-delay time -
0.5 Second
Voltage type for actuating -
AC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
1
ABB

Availability On Request

£91.63
