1SVR740784R3300

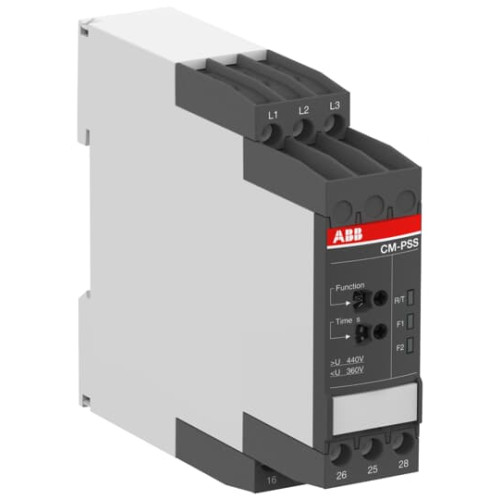

CM-PSS.41P Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x400VAC

Manufacturer's No: CM-PSS.41P     Manufacturer: ABB
CM-PSS.41P Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x400VAC

Availability On Request

£190.89
  • Three-phase monitoring relay CM-PSS.41P
    • Monitors phase parameters: over/undervoltage, phase failure
    • Phase sequence monitoring
    • Tripping delay adjustable from instantaneous to 30s (0.1-30s)
    • Rated control supply voltage: 400V AC
    • Three-phase measuring voltage: 3x400V AC
    • 2 c/o output with contacts rated at 250V / 4A
    • Features Easy Connect Technology with push-in terminals
    • Sealable transparent cover for protection against unauthorized changes available as accessory


Product

Manufacturer Material ID -
CM-PSS.41P
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
400 Volt
Rated control supply voltage Us at AC 60HZ -
400 Volt
Width -
22.5 Millimetre
Height -
85.6 Millimetre
Depth -
103.7 Millimetre
Voltage measurement range -
360 Volt
Phase sequence monitoring -
Phase failure detection -
Function under voltage detection -
Function over voltage detection -
Type of electric connection -
Spring clamp connection
Rated control supply voltage at AC 50 Hz -
400 Volt
Rated control supply voltage at AC 60 Hz -
400 Volt
Max. permitted delay-on energization time -
0.2 Second
Min. adjustable delay-on energization time -
0.2 Second
Max. permitted off-delay time -
30 Second
Min. adjustable off-delay time -
0.1 Second
Voltage type for actuating -
AC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
ABB

Availability On Request

£190.89
