1SVR730794R1300

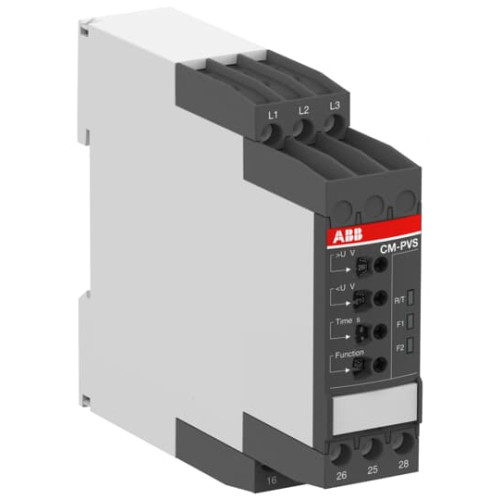

CM-PVS.31S Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x160-300VAC

Manufacturer's No: CM-PVS.31S     Manufacturer: ABB
CM-PVS.31S Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x160-300VAC

Availability On Request

£232.58
  • Model: CM-PVS.31S
  • Three-phase monitoring relay
  • Control supply voltage: 160-300 V AC
  • 2 c/o output contacts rated at 250 V / 4 A
  • Monitors phase parameters: over/undervoltage, phase failure
  • Adjustable threshold values
  • Selectable phase sequence monitoring
  • Selectable ON or OFF tripping delay
  • Tripping delay adjustable from instantaneous to 30 s (0, 0.1-30 s)
  • Sealable transparent cover for protection

Read more

  • Screw connection technology with double-chamber cage connection terminals


Product

Manufacturer Material ID -
CM-PVS.31S
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
160 Volt
Rated control supply voltage Us at AC 60HZ -
160 Volt
Width -
22.5 Millimetre
Height -
85.6 Millimetre
Depth -
103.7 Millimetre
Voltage measurement range -
160 Volt
Phase sequence monitoring -
Phase failure detection -
Function under voltage detection -
Function over voltage detection -
Type of electric connection -
Screw connection
Rated control supply voltage at AC 50 Hz -
160 Volt
Rated control supply voltage at AC 60 Hz -
160 Volt
Max. permitted delay-on energization time -
0.2 Second
Min. adjustable delay-on energization time -
0.2 Second
Max. permitted off-delay time -
30 Second
Min. adjustable off-delay time -
0.1 Second
Voltage type for actuating -
AC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
ABB

Availability On Request

£232.58
