1SVR730841R1300

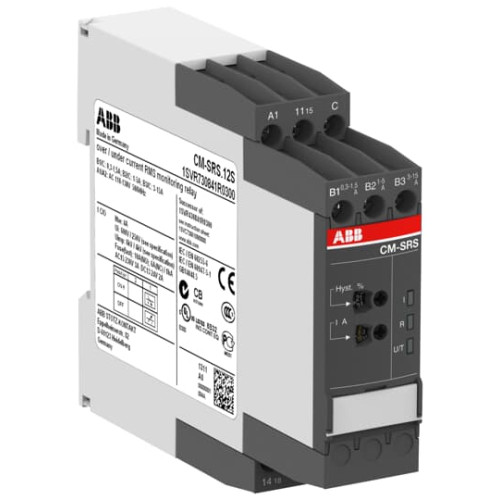

CM-SRS.12S Current monitoring relay 1c/o, B-C=0.3-15A RMS, 220-240VAC

Manufacturer's No: CM-SRS.12S     Manufacturer: ABB
CM-SRS.12S Current monitoring relay 1c/o, B-C=0.3-15A RMS, 220-240VAC

Availability Back Order

£167.86
  • Model: CM-SRS.12S
  • Type: Current monitoring relay
  • Operating Voltage: 220-240 V AC
  • Output Contact: 1 c/o (SPDT) rated at 250 V / 4 A
  • Measuring Principle: RMS for DC and AC currents
  • Measuring Ranges: 0.3-1.5 A, 1-5 A, 3-15 A
  • Monitoring Configuration: Over- or undercurrent
  • Adjustable Hysteresis: 3-30% of threshold value
  • Protection: Sealable transparent cover available
  • Connection: Screw connection technology with double-chamber cage connection terminals


Product

Manufacturer Material ID -
CM-SRS.12S
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
220 Volt
Rated control supply voltage Us at AC 60HZ -
220 Volt
Width -
22.5 Millimetre
Height -
85.6 Millimetre
Depth -
103.7 Millimetre
Current measurement range -
0.3 Ampere
Single-phase hysteresis possible -
Single-phase under current possible -
Single-phase over current possible -
Contains function DC-voltage under current -
Contains function DC-voltage over current -
Function DC-current hysteresis -
Type of electric connection -
Screw connection
Rated control supply voltage at AC 50 Hz -
220 Volt
Rated control supply voltage at AC 60 Hz -
220 Volt
Max. permitted delay-on energization time -
0 Second
Min. adjustable delay-on energization time -
0 Second
Max. permitted off-delay time -
0 Second
Min. adjustable off-delay time -
0 Second
Voltage type for actuating -
AC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
1
Current type -
AC
External power supply required -
Operating voltage at AC 50 Hz -
230 Volt
Operating voltage at AC 60 Hz -
230 Volt
Rated switch current -
4 Ampere
Response value amperage 1 -
0.3 Ampere
Response value amperage 2 -
0.3 Ampere
Supply voltage AC 50 Hz -
220 Volt
Supply voltage AC 60 Hz -
220 Volt
Voltage type (operating voltage) -
AC
Voltage type of supply voltage -
AC
ABB

Availability Back Order

£167.86
