1SVR730740R9200

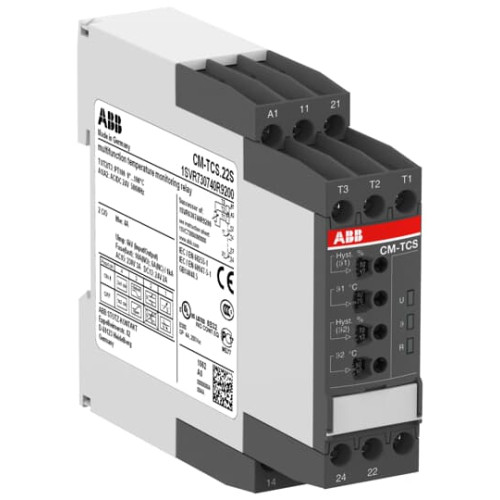

CM-TCS.22S Temperature monitoring relay Temp.-range 0...+100°C, 24VAC/DC

Manufacturer's No: CM-TCS.22S     Manufacturer: ABB
CM-TCS.22S Temperature monitoring relay Temp.-range 0...+100°C, 24VAC/DC

Availability On Request

£211.13
  • Model: CM-TCS.22S Temperature Monitoring Relay
  • Temperature Range: 0 to +100°C
  • Rated Control Supply Voltage: 24V AC/DC
  • Output: 2 c/o (SPDT) contacts rated at 250V/4A
  • Sensor: PT100 sensor for temperature measurement
  • Monitoring Functions: Overtemperature, undertemperature, and window monitoring with 2 adjustable thresholds
  • Transparent sealable cover available for protection
  • Connection: Screw connection technology with double-chamber cage connection terminals


Product

Manufacturer Material ID -
CM-TCS.22S
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Width -
22.5 Millimetre
Height -
85.6 Millimetre
Depth -
103.7 Millimetre
Number of measuring circuits -
1
Type of electric connection -
Screw connection
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
AC/DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
Temperature measuring range -
0 Degrees celsius
ABB

Availability On Request

£211.13
