1SVR405613R0000

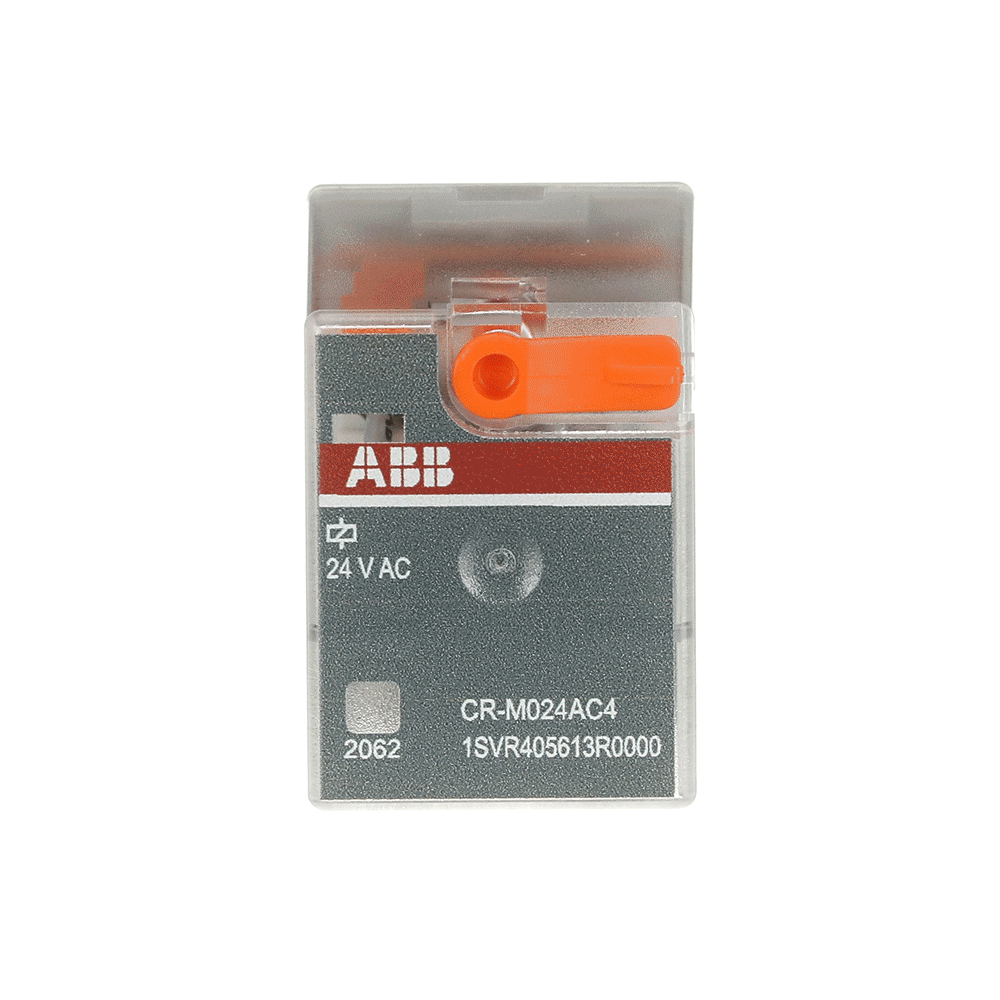

CR-M024AC4 Pluggable interface relay 4c/o, A1-A2=24VAC, 250V/6A

Manufacturer's No: CR-M024AC4     Manufacturer: ABB
CR-M024AC4 Pluggable interface relay 4c/o, A1-A2=24VAC, 250V/6A

Availability Back Order

£9.05
The CR-M024AC4 pluggable interface relay is from the CR-M (miniature) relay range. This relay operates with a 24 V AC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6 A. The relay has an integrated orange test button for manual actuation and locking of the output contacts. Standard sockets, logic sockets, pluggable function modules, holder and marker are available as accessories.


Product

Manufacturer Material ID -
CR-M024AC4
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
PL
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Degree of protection (IP) -
IP40
Degree of protection (IP rating) -
IP40
Depth -
27.5 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
35.6 Millimetre
Material contact -
Silver nickel (AgNi)
Material of contact surface -
Other
Nominal current -
6 Ampere
Number of contacts as change-over contact -
4
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Operating voltage at AC 50 Hz -
250 Volt
Operating voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Relay technology category according to IEC 61810-7 -
RT I
Type of electric connection -
Flat plug-in connection
Type of switch contact -
Single contact
Voltage type (operating voltage) -
AC/DC
Voltage type for actuating -
AC
Width -
21.2 Millimetre
ABB

Availability Back Order

£9.05
