1SVR405600R4000

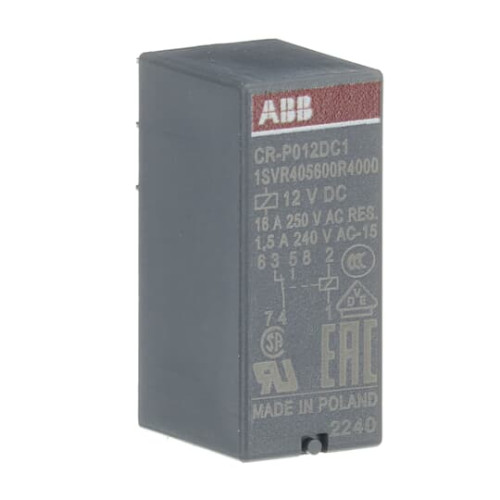

CR-P012DC1 Pluggable interface relay 1c/o, A1-A2=12VDC, 250V/16A

Manufacturer's No: CR-P012DC1     Manufacturer: ABB
CR-P012DC1 Pluggable interface relay 1c/o, A1-A2=12VDC, 250V/16A

Availability Back Order

£3.67
The CR-P012DC1 pluggable interface relay is from the CR-P (pcb) relay range. This relay operates with a 12 V DC rated control supply voltage and has a 1 c/o (SPDT) output contact rated at 250 V / 16 A. Standard sockets, logic sockets, pluggable function modules, holder and marker are available as accessories.


Product

Manufacturer Material ID -
CR-P012DC1
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
PL
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
0 Volt
Rated control supply voltage Us at AC 60HZ -
0 Volt
Rated control supply voltage Us at DC -
12 Volt
Degree of protection (IP) -
IP67
Degree of protection (IP rating) -
IP67
Depth -
29 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
15.7 Millimetre
Material contact -
Silver nickel (AgNi)
Material of contact surface -
Other
Nominal current -
16 Ampere
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Operating voltage at AC 50 Hz -
400 Volt
Operating voltage at AC 60 Hz -
400 Volt
Rated control supply voltage at DC -
12 Volt
Relay technology category according to IEC 61810-7 -
RT I
Type of electric connection -
Soldering flag connection
Type of switch contact -
Single contact
Voltage type (operating voltage) -
AC/DC
Voltage type for actuating -
DC
Width -
12.7 Millimetre
ABB

Availability Back Order

£3.67
