1SVR405541R6210

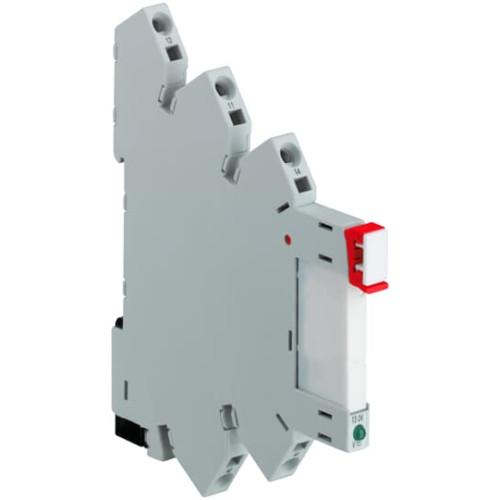

CR-S110VADC1CRZ Interface relay cpl. 1c/o, A1-A2=110VAC/DC, Output=6A/250VAC

Manufacturer's No: CR-S110VADC1CRZ     Manufacturer: ABB
CR-S110VADC1CRZ Interface relay cpl. 1c/o, A1-A2=110VAC/DC, Output=6A/250VAC

Availability On Request

£24.70
  • Interface relay with 1 changeover contact
  • Coil voltage: 110VAC/DC
  • Output: 6A at 250VAC
  • Equipped with spring terminals


Product

Manufacturer Material ID -
CR-S110VADC1CRZ
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
UNSPSC -
39121529

Technical Specification

Degree of protection (IP) -
UN
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Rated control supply voltage Us at DC -
110 Volt
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
94.7 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
76.6 Millimetre
Material contact -
Silver tin oxide (AgSnO2)
Material of contact surface -
Other
Nominal current -
6 Ampere
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Rated control supply voltage at DC -
110 Volt
Relay technology category according to IEC 61810-7 -
RT I
Type of electric connection -
Spring clamp connection
Type of switch contact -
Single contact
Voltage type (operating voltage) -
AC/DC
Voltage type for actuating -
AC/DC
Width -
6.2 Millimetre
ABB

Availability On Request

£24.70
