1SVR405541R7110

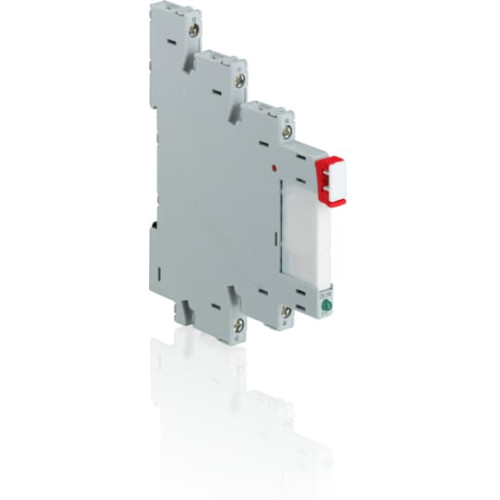

CR-S230VADC1CRS Interface relay cpl. 1c/o, A1-A2=230VAC/DC, Output=6A/250VAC

Manufacturer's No: CR-S230VADC1CRS     Manufacturer: ABB
CR-S230VADC1CRS Interface relay cpl. 1c/o, A1-A2=230VAC/DC, Output=6A/250VAC

Availability Back Order

£22.91
CR-S230VADC1CRS Interface relay cpl. 1c/o, A1-A2=230VAC/DC, Output=6A/250VAC screw terminals


Product

Manufacturer Material ID -
CR-S230VADC1CRS
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CN
UNSPSC -
39121529

Technical Specification

Degree of protection (IP) -
UN
Rated control supply voltage Us at AC 50HZ -
230 Volt
Rated control supply voltage Us at AC 60HZ -
230 Volt
Rated control supply voltage Us at DC -
230 Volt
Complete with socket -
Degree of protection (IP rating) -
IP20
Depth -
88.5 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
76.4 Millimetre
Material contact -
Silver tin oxide (AgSnO2)
Material of contact surface -
Other
Nominal current -
6 Ampere
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
230 Volt
Rated control supply voltage at DC -
230 Volt
Relay technology category according to IEC 61810-7 -
RT I
Type of electric connection -
Screw connection
Type of switch contact -
Single contact
Voltage type (operating voltage) -
AC/DC
Voltage type for actuating -
AC/DC
Width -
6.3 Millimetre
ABB

Availability Back Order

£22.91
