50127450

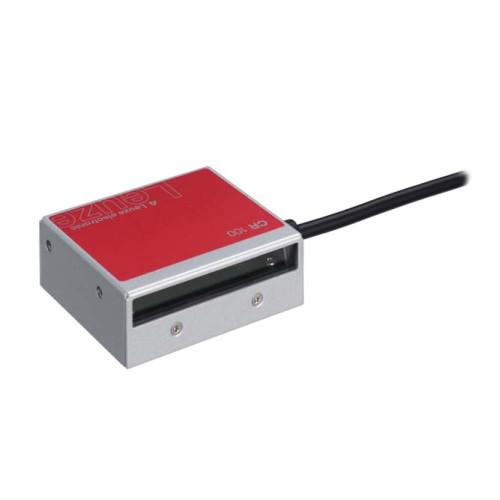

The Stationary bar code reader from . Scanning rate, typical: 700 scans/s; Reading distance: 20 ... 72 mm; Reading method: Line sc

Manufacturer's No: CR100M2/R2     Manufacturer: Leuze
The Stationary bar code reader from . Scanning rate, typical: 700 scans/s; Reading distance: 20 ... 72 mm; Reading method: Line scanner; Light beam exit: Front; Supply voltage: 4,9 ... 5,4 V, DC; Di

Availability On Request

£591.00
  • Functions: Output format selectable, Alignment mode, I/O, LED indicator, Multiple read / MultiScan, Reading gate control
  • Scanning rate: 700 scans/s
  • Reading distance: 20
  • 72 mm
  • Reading method: Line scanner
  • Light beam exit: Front
  • Supply voltage: 4.9
  • 5.4 V, DC
  • Digital switching inputs: 1 Piece
  • Digital switching outputs: 1 Piece

Read more

  • Interface: RS 232
  • Connection: Cable
  • Dimensions: 55 mm x 20 mm x 47 mm
  • Display: LED
  • Ambient temperature, operation: 0
  • 45 °C
  • Certifications: cUR us

Accessories



Product

Manufacturer Material ID -
CR100M2/R2
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
CN
UNSPSC -
43211701

Technical Specification

Scanning interval -
- Hertz
Number of safety fields -
-
Number of protected semiconductor outputs -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Detection power for test bodies -
- Millimetre
Laser protection class -
UN
Max. output current at protected output -
- Milliampere
Time of reaction -
- Millisecond
Transmission range of the measuring range -
- Metre
Transmission range of the safety field -
- Metre
Transmission range of the alert field -
- Metre
Scan angle -
- Degrees
Switching voltage of OSSD at state "high" -
- Volt
Type of safety acc. IEC 61496-1 -
UN
Wavelength of the sensor -
- Nanometre
Thumbnail of product picture -
Ambient temperature -
0 Degrees celsius
Height of sensor -
20 Millimetre
Length of sensor -
47 Millimetre
Number of semiconductor outputs with signalling function -
1
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
4.9 Volt
Type of electric connection -
Cable
Type of switching output of the OSSD -
NPN
Voltage type -
DC
Width sensor -
55 Millimetre
With configurable message output -
Leuze

Availability On Request

£591.00
