1SVR740180R3100

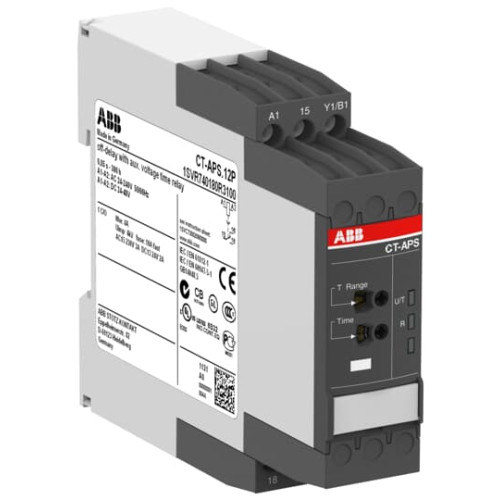

CT-APS.12P Time relay, OFF-delay 1c/o, 24-48VDC, 24-240VAC

Manufacturer's No: CT-APS.12P     Manufacturer: ABB
CT-APS.12P Time relay, OFF-delay 1c/o, 24-48VDC, 24-240VAC

Availability In Stock

£94.62
  • Model: CT-APS.12P Time Relay
  • Function: OFF-delay (delay on break)
  • Time Ranges: 0.05 s to 300 h
  • Control Supply Voltage: 24-48V DC / 24-240V AC
  • Output: 1 c/o (SPDT) rated at 250V / 4A
  • Control Input: Voltage-related triggering
  • Features: Sealable transparent cover for protection, Easy Connect Technology with push-in terminals
  • Range: CT-S Timer Series


Product

Manufacturer Material ID -
CT-APS.12P
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
103.7 Millimetre
Function delay on de-energization -
Height -
85.6 Millimetre
Nominal current -
4 Ampere
Number of outputs, delayed, change-over contact -
1
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
1
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Operating voltage at AC 50 Hz -
250 Volt
Operating voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Suitable for DIN rail (top hat rail) mounting -
Time range -
0.05 Second
Type of electric connection -
Spring clamp connection
Voltage type (operating voltage) -
AC/DC
Voltage type for actuating -
AC/DC
Width -
22.5 Millimetre
ABB

Availability In Stock

£94.62
