1SVR730030R3300

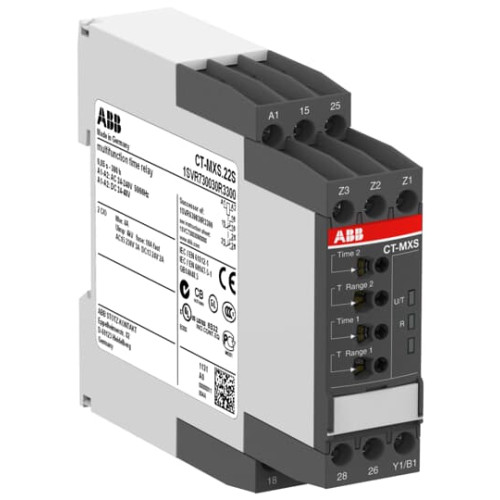

CT-MXS.22S Time relay, multifunction 2c/o, 24-48VDC, 24-240VAC

Manufacturer's No: CT-MXS.22S     Manufacturer: ABB
CT-MXS.22S Time relay, multifunction 2c/o, 24-48VDC, 24-240VAC

Availability On Request

£144.83
  • Model: CT-MXS.22S
  • Multifunction electronic time relay from the CT-S timer range
  • 5 timing functions with 2x10 time ranges from 0.05 s to 300 h
  • Rated control supply voltage: 24 - 48 V DC / 24 - 240 V AC
  • 2 c/o (SPDT) output with contacts rated at 250 V / 4 A
  • Control input for voltage-related triggering
  • Option to connect two remote potentiometers for time delay adjustment
  • Sealable transparent cover for protection against unauthorized changes
  • Screw connection technology with double-chamber cage connection terminals


Product

Manufacturer Material ID -
CT-MXS.22S
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
103.7 Millimetre
Function floating contact on energization -
Height -
85.6 Millimetre
Nominal current -
4 Ampere
Number of outputs, delayed, change-over contact -
2
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
2
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Operating voltage at AC 50 Hz -
250 Volt
Operating voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Remote operation possible -
Suitable for DIN rail (top hat rail) mounting -
Time range -
0.05 Second
Type of electric connection -
Screw connection
Voltage type (operating voltage) -
AC/DC
Voltage type for actuating -
AC/DC
Width -
22.5 Millimetre
ABB

Availability On Request

£144.83
