1SVR500211R0100

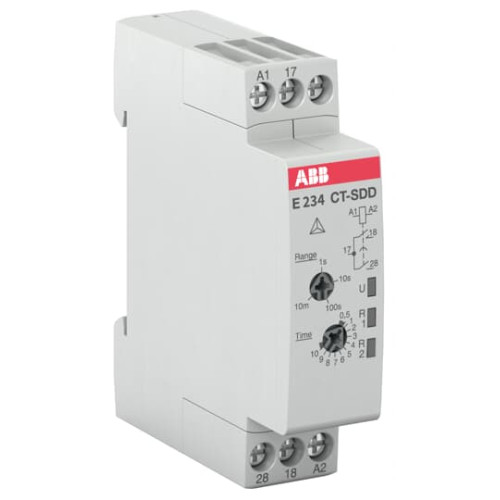

CT-SDD.22 Time relay, star-delta 2n/o, 24-48VDC, 24-240VAC

Manufacturer's No: CT-SDD.22     Manufacturer: ABB
CT-SDD.22 Time relay, star-delta 2n/o, 24-48VDC, 24-240VAC

Availability On Request

£63.55
  • Model: CT-SDD.22 Time Relay
  • Function: Star-delta with fixed transition time
  • Time Ranges: 0.05 s to 10 min
  • Transition Time: 50 ms
  • Control Supply Voltage: 24-48 V DC / 24-240 V AC
  • Output: 2 n/o contacts rated at 250 V / 5 A


Product

Manufacturer Material ID -
CT-SDD.22
Net Weight -
0.59kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
63 Millimetre
Function star-delta -
Height -
70 Millimetre
Nominal current -
5 Ampere
Number of outputs, delayed, change-over contact -
0
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
2
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
2
Operating voltage at AC 50 Hz -
250 Volt
Operating voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Suitable for DIN rail (top hat rail) mounting -
Time range -
0.05 Second
Type of electric connection -
Screw connection
Voltage type (operating voltage) -
AC/DC
Voltage type for actuating -
AC/DC
Width -
17.5 Millimetre
ABB

Availability On Request

£63.55
