1SVR508160R0100

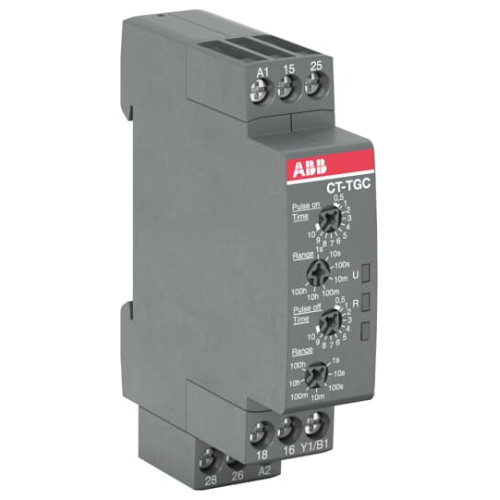

CT-TGC.22 Time relay, Pulse generator 2c/o, 24-48VDC/24-240VAC

Manufacturer's No: CT-TGC.22     Manufacturer: ABB
CT-TGC.22 Time relay, Pulse generator 2c/o, 24-48VDC/24-240VAC

Availability On Request

£63.53
  • Model: CT-TGC.22
  • Type: Time relay, Pulse generator
  • Function: Pulse generator with 2x7 time ranges from 0.05 s to 100 h
  • Control Supply Voltage: 24-48 V DC / 24-240 V AC
  • Output: 2 c/o (SPDT) contacts rated at 250 V / 4 A
  • Control Input: Voltage-related triggering (non-floating)


Product

Manufacturer Material ID -
CT-TGC.22
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85364900
UNSPSC -
39121529

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
63 Millimetre
Height -
80 Millimetre
Nominal current -
4 Ampere
Number of outputs, delayed, change-over contact -
2
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
2
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Operating voltage at AC 50 Hz -
250 Volt
Operating voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Suitable for DIN rail (top hat rail) mounting -
Time range -
0.05 Second
Type of electric connection -
Screw connection
Voltage type (operating voltage) -
AC/DC
Voltage type for actuating -
AC/DC
Width -
17.5 Millimetre
ABB

Availability On Request

£63.53
