7TCA091180R0347

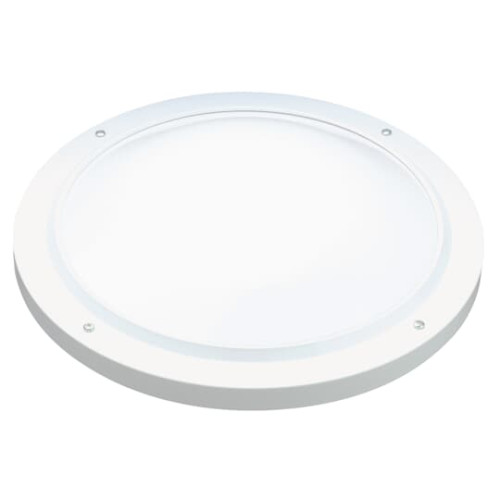

CLQ LED 2D WH/OPAL CT

Manufacturer's No: CTCLQ4LA1     Manufacturer: ABB
CLQ LED 2D WH/OPAL CT

Availability On Request

£352.19
  • Model: CLQ LED 2D WH/OPAL CT
  • Type: Camarque Decorative LED Luminaire
  • Version: CT
  • Power: 2 LED (20W + 2W)
  • Light Output: 1830 Lumens (Main) / 207 Lumens (Additional)
  • Voltage: 220-240V AC, 50/60Hz
  • Operating Temperature: 0-30°C
  • Color: White/Opal


Product

Manufacturer Material ID -
CTCLQ4LA1
Net Weight -
2.70kg

Additional Product Information

Commodity Code -
9405499090
Country of Origin -
HU
UNSPSC -
39101600

Technical Specification

Lamp included -
Battery chemistry -
NiCd
Colour temperature -
4000 Kelvin
Control gear -
LED driver constant current
Cover material -
Plastic opal
Degree of protection (IP rating) -
IP20
Function -
Escape route lighting
Height/depth -
122 Millimetre
Housing colour -
White
Housing material -
Plastic
Length -
348 Millimetre
Light distribution -
Diffuser
Light source included -
Light source type -
LED non-replaceable
Luminous flux in standby mode -
207 Lumen
Maximum system power -
23 Watt
Monitoring equipment -
Safety module for monitoring (central feeded system)
Mounting method -
Wall surface mounted / ceiling surface mounting
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lighting heads -
1
Power factor -
0.87
Power supply system -
Peripheral (individual battery)
Protection class -
I
Rated ambient temperature acc. IEC62722-2-1 -
0 Degrees celsius
Type of cabling -
Ending
Voltage type -
AC
Width -
348 Millimetre
With remote switch connection -
ABB

Availability On Request

£352.19
