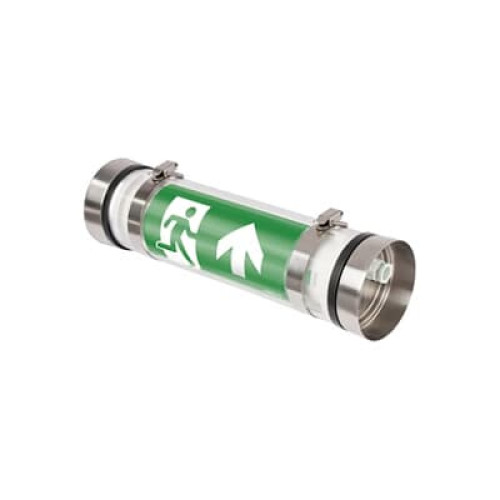

7TCA091720R0182

INDULUX LED D/S M3 CT

Manufacturer's No: CTIND3LS5DS     Manufacturer: ABB
INDULUX LED D/S M3 CT

Availability On Request

£490.36
  • Product: INDULUX LED D/S M3 CT
  • Type: All-In-One Tubular Emergency Lighting
  • Version: CT
  • Input: 220-240V AC, 50Hz
  • LED: 2 x 10W
  • Lamp Output: 400 Lumens
  • Operating Temperature: 0-40°C


Product

Manufacturer Material ID -
CTIND3LS5DS
Net Weight -
1.88kg

Additional Product Information

Commodity Code -
9405606000
Country of Origin -
FR
UNSPSC -
39101600

Technical Specification

Lamp included -
Battery chemistry -
NiMH
Colour temperature -
6000 Kelvin
Control gear -
LED driver constant current
Cover material -
Plastic transparent
Degree of protection (IP rating) -
IP68
Function -
Escape route lighting/signage
Height/depth -
114 Millimetre
Housing colour -
White
Housing material -
Stainless steel
Impact resistance (IK rating) -
IK10
Labelling type -
Insert sheet/plate
Length -
398 Millimetre
Light distribution -
Diffuser
Light source included -
Light source type -
LED non-replaceable
Luminous flux in standby mode -
400 Lumen
Maximum system power -
7 Watt
Monitoring equipment -
Safety module for monitoring (central feeded system)
Mounting method -
Wall surface mounted / ceiling surface mounting
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lighting heads -
1
Outer diameter -
108 Millimetre
Pictogram included -
Power factor -
0.48
Power supply system -
Peripheral (individual battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
0 Degrees celsius
Type of cabling -
Ending
Type of indicator -
Single/double-sided
Viewing distance -
17 Metre
Voltage type -
AC
Width -
114 Millimetre
With remote switch connection -
ABB
