3064568

Photoelectric Sensor, Photoelectric Sensor for Plastic Fibers

Manufacturer's No: D10INFPGQ     Manufacturer: Turck Banner
Photoelectric Sensor, Photoelectric Sensor for Plastic Fibers

Availability On Request

POA
  • Type: Photoelectric Sensor for Plastic Fibers
  • Operating Voltage: 12-24 VDC
  • Connector: Male 8mm, 6-pin, snap-lock
  • Features: Teaching function
  • Response Time: Adjustable
  • Light Emission: Green visible light
  • Optical Sensitivity: Adjustable
  • Switch-off Delay: 0-100 ms


Product

Manufacturer Material ID -
D10INFPGQ
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP50

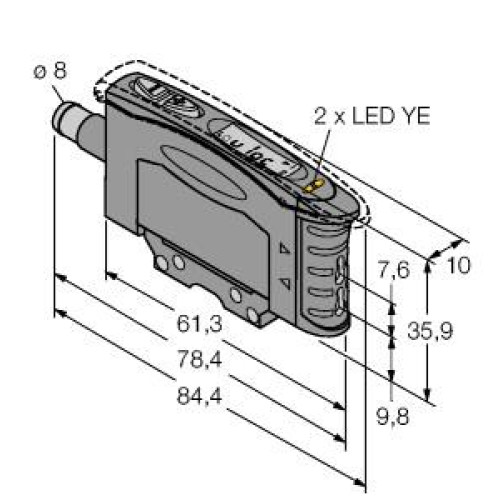

Height amplifier -
35.9 Millimetre
Housing material -
Plastic
Length amplifier -
84.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
65 Milliampere
Type of electric connection -
Connector M8
Type of light -
Green light
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Width amplifier -
10.5 Millimetre
Turck Banner

Availability On Request

POA
