Inductive Sensor, Rotation speed monitor

Manufacturer's No: DBI5U-M18E-AP4X3     Manufacturer: Turck Banner
Inductive Sensor, Rotation speed monitor

Availability On Request

POA
  • Inductive Sensor
  • Rotation speed monitor
  • Operating voltage: 10 to 65 VDC
  • Rated switching distance: 5 mm
  • Large monitoring range: 3 to 3000 RPM
  • Flush mounting style

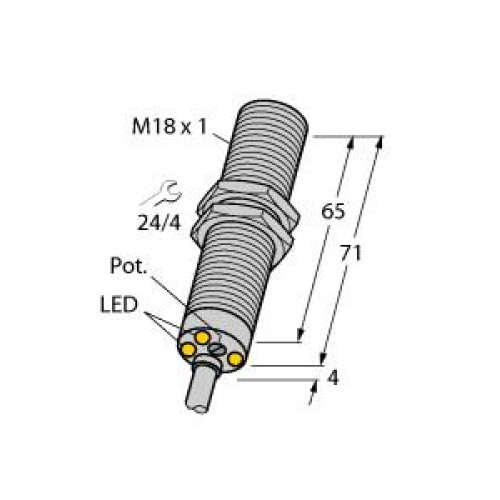

  • Threaded barrel: M18 x 1, made of chrome-plated brass
  • Cable length: 2 meters
  • Adjusted via potentiometer
  • Fixed start-up time delay: 5 seconds

Read more

  • Resistant to magnetic fields
  • DC 3-wire configuration
  • NO contact, PNP output
  • Cable connection


Product

Manufacturer Material ID -
DBI5U-M18E-AP4X3
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
75 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
10 Volt
Switching distance -
5 Millimetre
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
