50135000

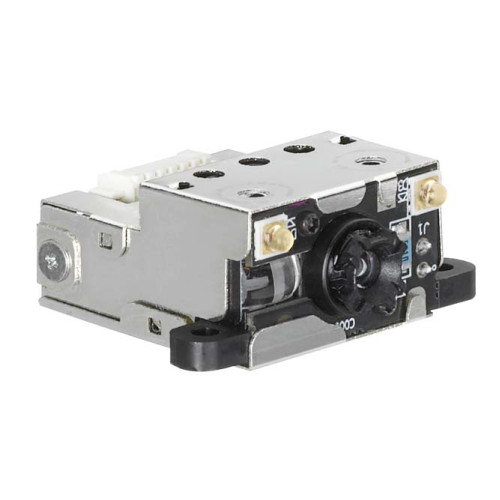

The Stationary 2D-code reader from . Special design: Scan Engine Module; Software functions: Reading of 2D codes, Reading of 1D co

Manufacturer's No: DCR50M2/R2     Manufacturer: Leuze
The Stationary 2D-code reader from . Special design: Scan Engine Module; Software functions: Reading of 2D codes, Reading of 1D codes; Reading distance: 30 ... 425 mm; Camera resolution, horizontal

Availability On Request

£574.00
  • Special version: Scan Engine Module
  • Software functions: Reading of 2D codes, Reading of 1D codes
  • Reading distance: 30-425 mm
  • Camera resolution: 1,280 px (horizontal) x 960 px (vertical)
  • Supply voltage: 4.75-5.25 V DC
  • Switching inputs: 1
  • Switching outputs: 1
  • Digital switching output: NPN
  • Interface: RS 232
  • Connection: Molex connector 53261-0671

Read more

  • Dimensions: 31.6 mm x 12.7 mm x 27.5 mm
  • Ambient temperature, operation: 0-50 °C

Accessories



Product

Manufacturer Material ID -
DCR50M2/R2
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
MY
UNSPSC -
43211701

Technical Specification

Degree of protection (IP) -
UN
Type of interface -
UN
Max. image capture frequency -
- Hertz
Thumbnail of product picture -
Degree of protection (IP rating) -
Other
Depth -
27.5 Millimetre
Height -
12.7 Millimetre
Interface type -
RS-232
Max. electricity consumption -
0.3 Ampere
Max. transmission range -
425 Millimetre
Model -
Fix mounted
Nominal voltage DC -
5.25 Volt
Number of digital inputs -
1
Number of digital outputs -
1
Type of fastening -
Other
Width -
31.6 Millimetre
Leuze

Availability On Request

£574.00
