2CSB202101R1630

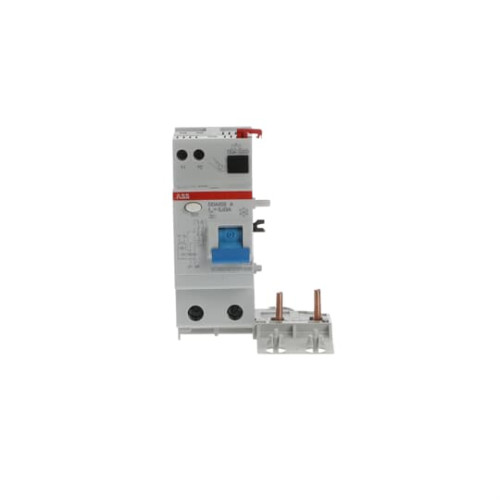

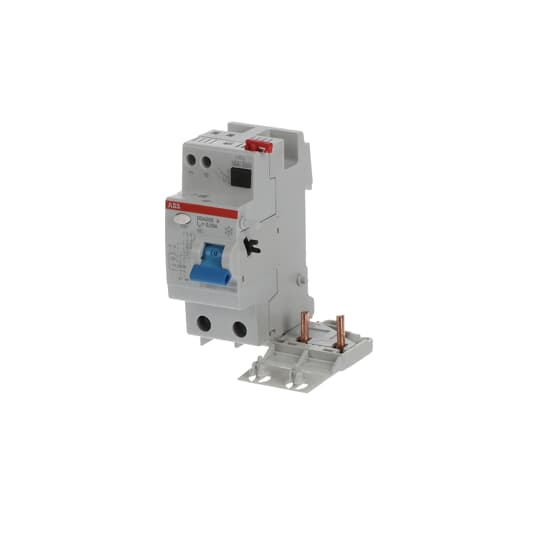

DDA202 A-63/0.03 Residual Current Device Block

Manufacturer's No: DDA202A-63/0.03     Manufacturer: ABB
DDA202 A-63/0.03 Residual Current Device Block

Availability On Request

£164.94
  • Model: DDA202 A-63/0.03 Residual Current Device Block
  • Suitable for assembly with MCBs S200 series and S300P
  • Provides protection against sinusoidal alternating and direct pulsating earth fault currents
  • Protects against indirect contacts
  • Additional protection against direct contacts with sensitivity of 30 mA
  • Applications: residential, commercial, industrial


Product

Manufacturer Material ID -
DDA202A-63/0.03
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Max. delay time -
- Millisecond
Degree of protection (IP) -
UN
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
25 Square millimetre
Connectable conductor cross section solid-core -
25 Square millimetre
Degree of protection (IP rating) -
IP2X
Frequency -
50/60 Hz
Leakage current type -
A
Nominal current -
63 Ampere
Nominal voltage -
230 Volt
Number of poles -
2
Power loss -
5 Watt
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
With interlocking device -
ABB
