2CDG110199R0011

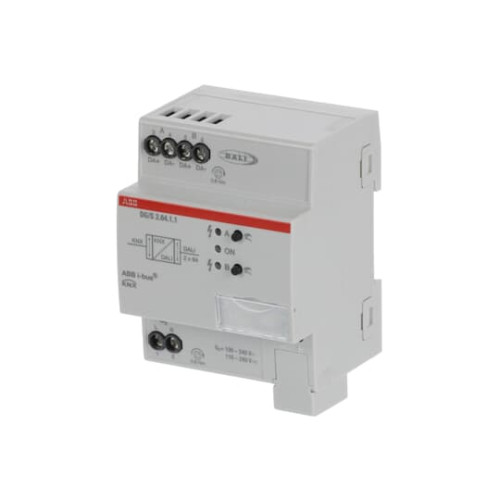

DG/S2.64.1.1 DALI Gateway, Basic, 2-fold, MDRC

Manufacturer's No: DG/S2.64.1.1     Manufacturer: ABB
DG/S2.64.1.1 DALI Gateway, Basic, 2-fold, MDRC

Availability On Request

£655.66
  • DG/S2.64.1.1 DALI Gateway, Basic, 2-fold, MDRC, Single-Master DALI Controller certified according to DALI-2 (EN 62386)
  • Used to control DALI or DALI-2 standard devices via ABB i-bus® KNX
  • Two DALI outputs for up to 2x64 DALI participants with integrated DALI power supply
  • Control and status feedback via KNX per DALI participants (2x64) and lighting groups (2x16) in broadcast or per scenes (2x16)
  • Features slave, staircase, force, block, and scene functions
  • Self-contained emergency converter DT1 supported according to EN 62386-202
  • Enables triggering of different emergency tests (e.g., function and duration test) via KNX and emergency converter
  • Can control other DALI devices such as DT6 or DT8 using standard DALI commands according to EN 62386-102
  • Separate software tool (ABB i-bus® Tool) available for diagnostic use and individual changes to DALI address or group assignment


Product

Manufacturer Material ID -
DG/S2.64.1.1
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
UNSPSC -
43201503

Technical Specification

Model -
Light system interface/Dali
Operating voltage -
230 Volt
Protocol -
Other
Degree of protection (IP) -
IP20
Other bus systems -
Other
With LED indication -
Bus system KNX -
Degree of protection (IP rating) -
IP20
Mounting method -
DRA (DIN-rail adapter)
Updateable -
Width in number of modular spacings -
4
ABB

Availability On Request

£655.66
