2CDG110274R0011

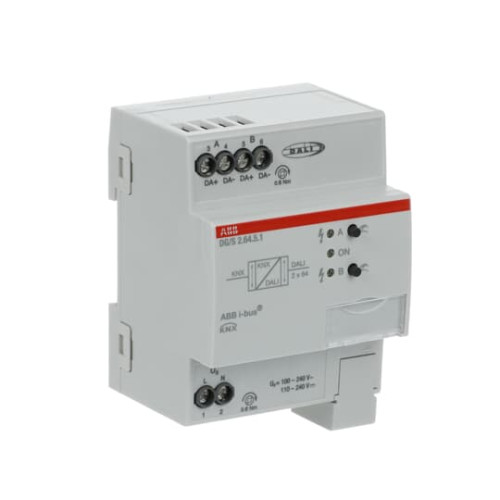

DG/S2.64.5.1 DALI Gateway, Premium, 2-fold, MDRC

Manufacturer's No: DG/S2.64.5.1     Manufacturer: ABB
DG/S2.64.5.1 DALI Gateway, Premium, 2-fold, MDRC

Availability On Request

£714.84
  • DG/S2.64.5.1 DALI Gateway, Premium, 2-fold, MDRC, Single-Master DALI Controller certified according to DALI-2 (EN 62386)
  • Used to control DALI or DALI-2 devices via ABB i-bus® KNX
  • Two DALI outputs for up to 2x64 DALI participants with integrated DALI power supply
  • Control and status feedback via KNX per DALI participants (2x64) and lighting groups (2x16) in broadcast or per scenes (2x16)
  • Supports DALI devices type DT1 (Self-contained emergency converter) and type DT8 (colour temperature Tc & RGB(W))
  • Other DALI devices like DT6 can be controlled via standard DALI commands
  • Features extensive fault and error messages, slave-, staircase-, force-, block- and scene-function integration
  • Capable of setting and dimming color, HSV(W)-, Dim2Warm-, HCL-function, and using 4 sequencers per DALI output
  • Standby switch-off with KNX switch actuator (e.g., SA/S) and integration into load control system possible
  • Enables triggering different emergency tests and transferring test results back to KNX using KNX and DT1 converter

Read more

  • Separate software tool (ABB i-bus® Tool) available for diagnostic use and individual change of DALI address or group assignment.


Product

Manufacturer Material ID -
DG/S2.64.5.1
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
UNSPSC -
43201503

Technical Specification

With LED indication -
Bus system KNX -
Degree of protection (IP rating) -
IP20
Mounting method -
DRA (DIN-rail adapter)
Updateable -
Width in number of modular spacings -
4
