DK12-11/A/124/136

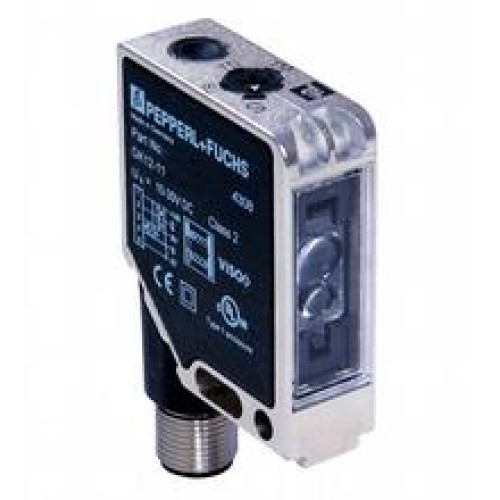

Print mark contrast sensor - Sensor range: 11 mm ± 2 mm, Light source: 3 LEDs (R,G,B), Light type: Visible green/red/blue,

Manufacturer's No: 198989     Manufacturer: Pepperl+Fuchs
Print mark contrast sensor - Sensor range: 11 mm ± 2 mm, Light source: 3 LEDs (R,G,B), Light type: Visible green/red/blue, modulated light, Signal output: 2 push-pull (4 in 1) outputs, complementar..

Availability Back Order

£494.78
  • Sensor range: 11 mm ± 2 mm
  • Light source: 3 LEDs (R,G,B) emitting visible green/red/blue modulated light
  • Signal output: 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected
  • Switching type: light/dark on
  • Connection: Metal connector, M12, 5-pin, 90° rotatable
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -20 to 60 °C (-4 to 140 °F)


Product

Manufacturer Material ID -
198989
Net Weight -

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£494.78
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
