1582235

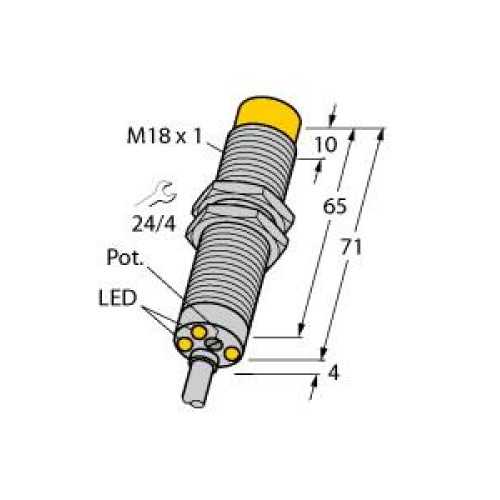

Inductive Sensor, Rotation speed monitor

Manufacturer's No: DNI12U-M18E-AP4X3     Manufacturer: Turck Banner
Inductive Sensor, Rotation speed monitor

Availability On Request

£249.27
  • Inductive Sensor
  • Rotation speed monitor
  • Operating voltage: 10 to 65 VDC
  • Rated switching distance: 12 mm
  • Non-flush design
  • Cable length: 2 m
  • Threaded barrel: M18 x 1, chrome-plated brass
  • Large monitoring range: 3 to 3000 RPM
  • Adjusted via potentiometer
  • Fixed start-up time delay: 5 s

Read more

  • Resistant to magnetic fields
  • DC 3-wire, 10 to 65 VDC
  • NO contact, PNP output
  • Cable connection


Product

Manufacturer Material ID -
DNI12U-M18E-AP4X3
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
75 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
12 Millimetre
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
