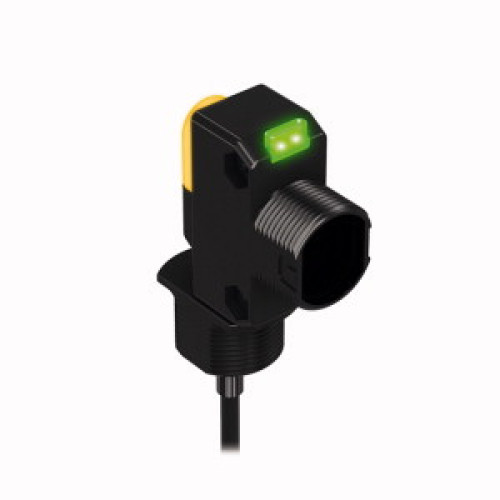

DS186E CABLE EMITTER

Manufacturer's No: DS186E     Manufacturer: Turck Banner
DS186E CABLE EMITTER

Availability Available to order

£54.04
  • Photoelectric sensor in Opposed Mode
  • Operating voltage: 10-30 VDC
  • Max. range: 20000 mm
  • Cable length: 2 m
  • Emitter included


Product

Manufacturer Material ID -
DS186E
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
47.9 Millimetre
Housing material -
Plastic
Length of sensor -
31.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Type of electric connection -
Cable
Wavelength of the sensor -
940 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability Available to order

£54.04
