76557 {B}

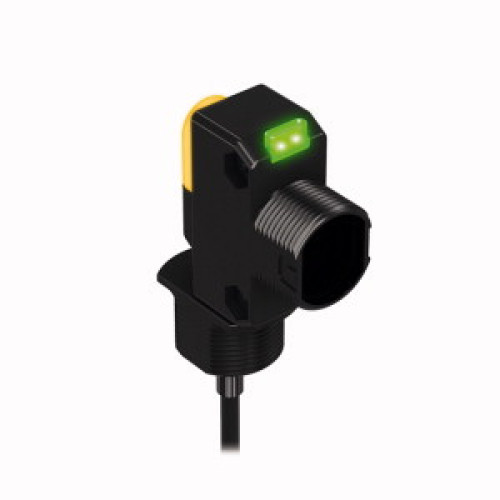

DS18 VP6LPQ5 4-PIN M12 QP POL RETRO

Manufacturer's No: DS18VP6LPQ5     Manufacturer: Turck Banner
DS18 VP6LPQ5 4-PIN M12 QP POL RETRO

Availability Available to order

£107.20
  • Photoelectric sensor in diffuse mode
  • Operating voltage: 10-30 VDC
  • Maximum range: 3500 mm
  • Cable length: 0.15 m
  • Male M12 x 1, 4-pin connector
  • Protection class: IP67
  • LED visible from all angles
  • PNP switching output, changeover


Product

Manufacturer Material ID -
DS18VP6LPQ5
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
47.9 Millimetre
Housing material -
Plastic
Length of sensor -
31.1 Millimetre
Max. switching distance -
3500 Millimetre
Rated switching distance -
3500 Millimetre
Reaction time -
2 Millisecond
Type of electric connection -
Connector M12
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
660 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability Available to order

£107.20
