76552 {B}

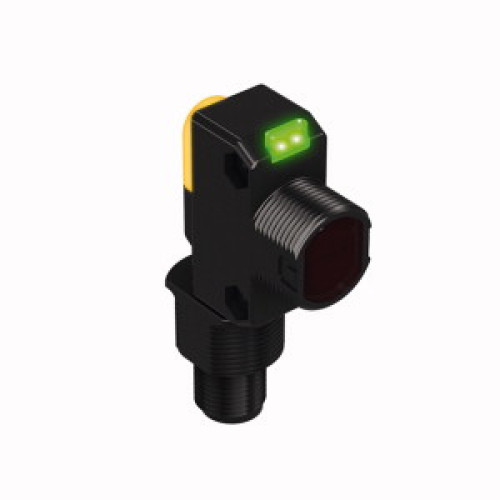

DS18 Series Sensors: Polarized Retroreflective, Range: 3.5 m (11.4 ft), Input: 10-30 V dc, Output: Complementary PNP, 4-pin M12 In

Manufacturer's No: DS18VP6LPQ8     Manufacturer: Turck Banner
DS18 Series Sensors: Polarized Retroreflective, Range: 3.5 m (11.4 ft), Input: 10-30 V dc, Output: Complementary PNP, 4-pin M12 Integral QD

Availability Available to order

£91.25
  • Photoelectric sensor
  • Operating voltage: 10-30 VDC
  • Max. range: 3500 mm
  • PNP switching output


Product

Manufacturer Material ID -
DS18VP6LPQ8
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39121521

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
59.9 Millimetre
Housing material -
Plastic
Length of sensor -
31.1 Millimetre
Max. switching distance -
3500 Millimetre
Rated switching distance -
3500 Millimetre
Reaction time -
2 Millisecond
Type of electric connection -
Connector M12
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
660 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability Available to order

£91.25
