2CSR253101R1165

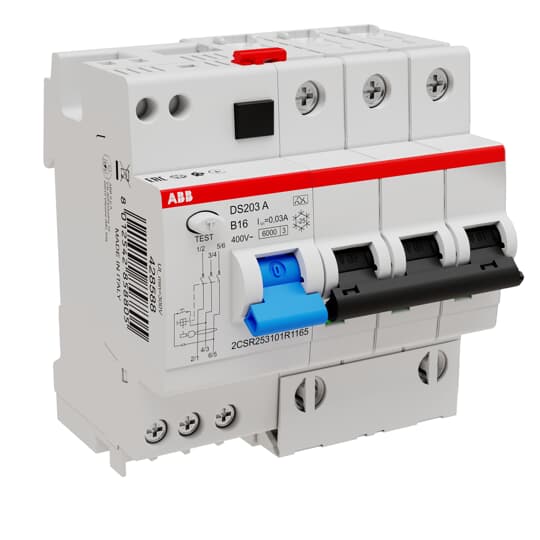

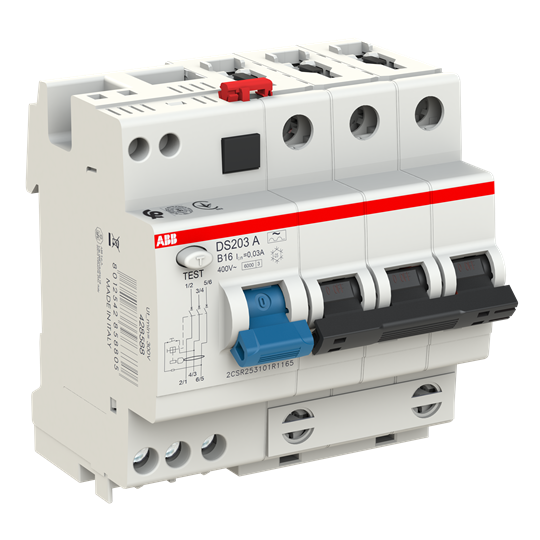

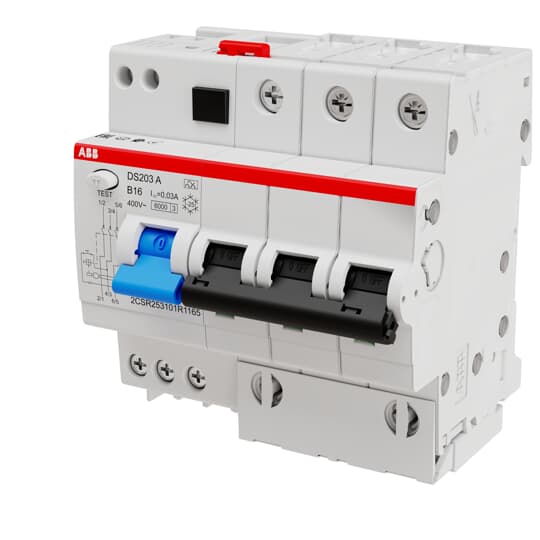

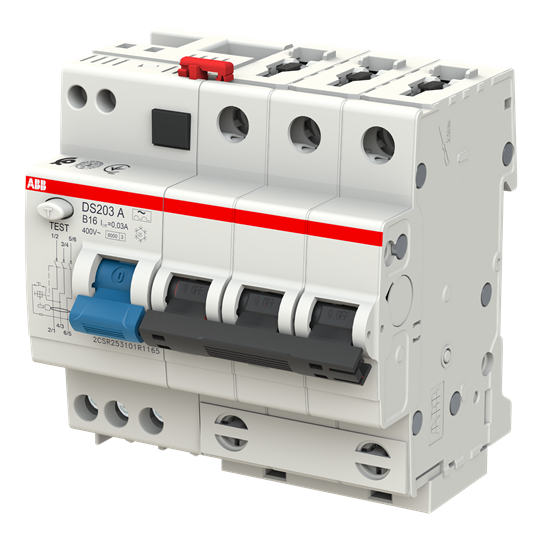

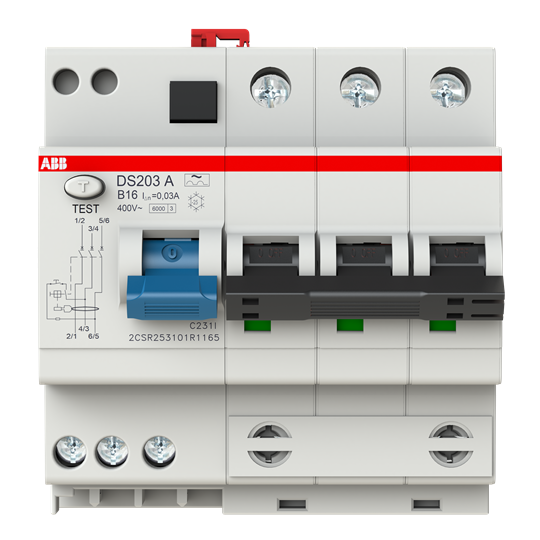

DS203 A-B16/0.03 Residual Current Circuit Breaker with Overcurrent Protection

Manufacturer's No: DS203 A-B16/0,03     Manufacturer: ABB

Availability Back Order

£317.56
  • DS203 A-B16/0.03 Residual Current Circuit Breaker with Overcurrent Protection
  • Part of the RCBOs DS200 series
  • Protects against overload and short-circuit currents
  • Provides protection against sinusoidal alternating earth fault currents
  • Offers protection against indirect and direct contacts


Product

Manufacturer Material ID -
DS203 A-B16/0,03
Net Weight -
0.61kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Release characteristic -
B
Breaking capacity -
6 kiloampere
Depth -
69 Millimetre
Height -
85 Millimetre
Number of earth leakage circuit breakers -
1
Number of protected poles -
3
Rated current -
16 Ampere
Rated fault current -
30 Milliampere
Tripping characteristic (type/curve) -
B
Width -
87.5 Millimetre
ABB

Availability Back Order

£317.56
