1SAJ611000R0101

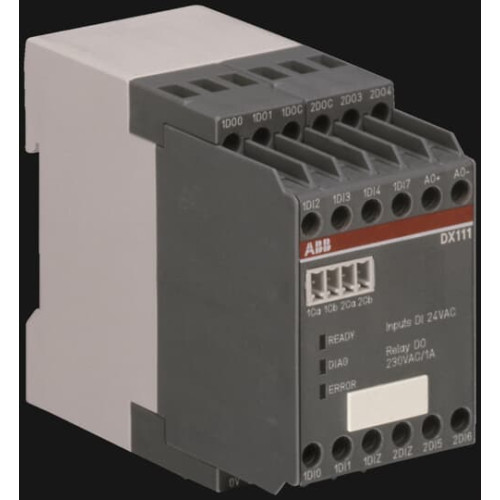

DX111-FBP.0 IO-Module for UMC100 DI 24 VDC, supply 24VDC

Manufacturer's No: DX111     Manufacturer: ABB
DX111-FBP.0 IO-Module for UMC100 DI 24 VDC, supply 24VDC

Availability Back Order

POA
DX111 IO-Module for UMC100, 8 DI 24VDC, 4 DO, 1AO, Supply 24VDC


Product

Manufacturer Material ID -
DX111
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Number of binary inputs -
8
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Number of electronic outputs -
0
Number of outputs, with contact -
4
Model -
Digital module
Switching function -
Mono stable
Number of analogue inputs -
0
Number of analogue outputs -
1
Rated control supply voltage at DC -
24 Volt
Degree of protection (IP rating) -
IP20
Type of electrical connection for auxiliary- and control current circuit -
Screw connection
Voltage type for actuating -
DC
Degree of protection (NEMA) -
Other
