2CDE281001R1016

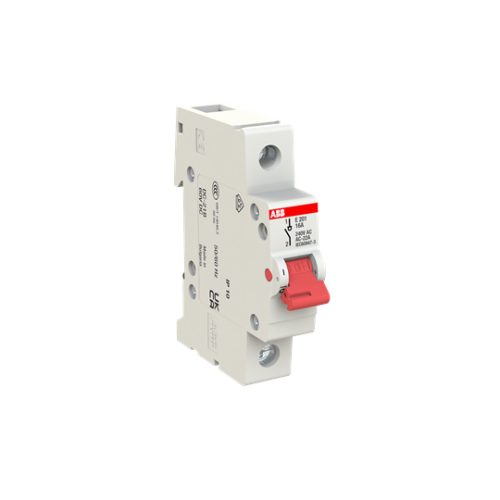

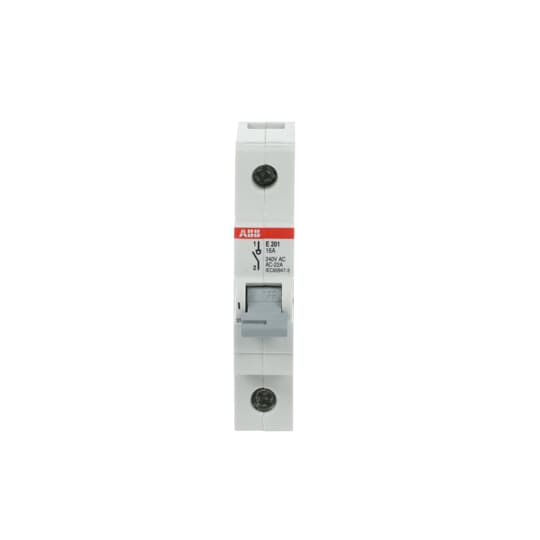

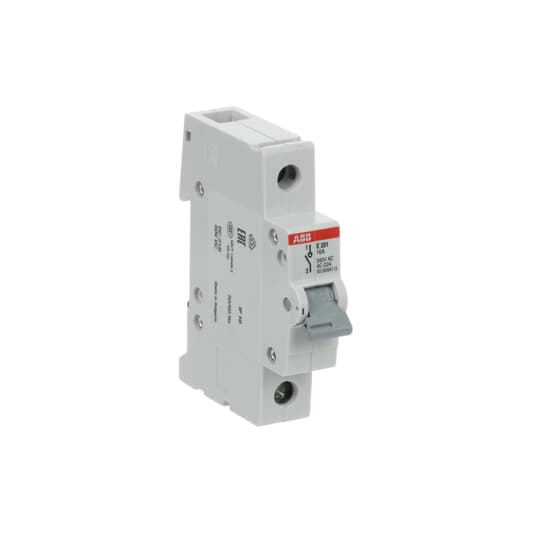

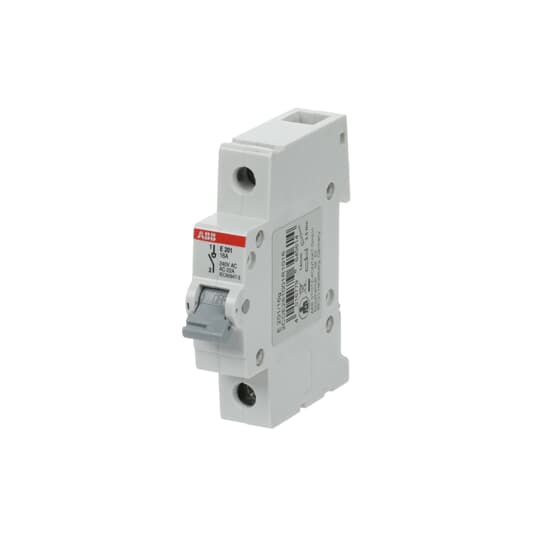

E201/16G Switch Disconnector

Manufacturer's No: E201/16G     Manufacturer: ABB
E201/16G Switch Disconnector

Availability Back Order

£18.42
  • E201/16G Switch Disconnector
  • Suitable for commanding loads
  • Complies with EN 60947-3 and EN 60669-1 standards
  • Fast removal of busbar without dismantling
  • Captive screws with recessed/slotted head
  • Pozidrive size 2
  • Add-on of up to 3 auxiliary contact S2C-H6R possible
  • Integrated lay-on edge for labeling system ILS
  • Locking device available as accessory for unauthorized ON/OFF
  • Approvals: VDE, CCC, KEMA


Product

Manufacturer Material ID -
E201/16G
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
BG
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Max. lamp power -
- Watt
Lamp type -
UN
Rated switching capacity -
- kiloampere
Lamp socket -
UN
Built-in depth -
70 Millimetre
Colour calotte -
Grey
Min. rated voltage -
12 Volt
Forced segregation (according to DIN VDE 0113) -
Degree of protection (IP) -
IP10
Short-circuit breaking capacity (Icw) -
25 kiloampere
Colour light source -
Grey
Degree of protection (IP rating) -
IP10
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Number of poles -
1
Rated current -
16 Ampere
Rated voltage -
230 Volt
Recess depth -
70 Millimetre
Switching function -
Off switch
Voltage type -
Other
Width in number of modular spacings -
1
ABB

Availability Back Order

£18.42
