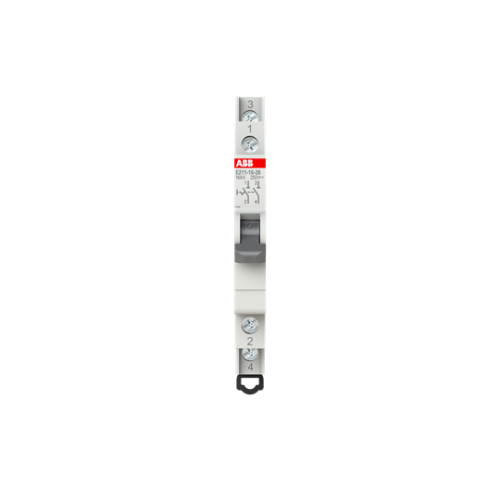

2CCA703005R0001

ON-OFF Switch, 16 A, acc. to EN 250/400 V AC, 2NO, El. Color: Grey, MW: 0.5

Manufacturer's No: E211-16-20     Manufacturer: ABB
ON-OFF Switch, 16 A, acc. to EN 250/400 V AC, 2NO, El. Color: Grey, MW: 0.5

Availability On Request

£21.76
  • ON-OFF Switch
  • Rated Current: 16 A
  • Voltage: 250/400 V AC
  • Contacts: 2NO
  • Color: Grey
  • Conforms to EN 250/400 V AC standards
  • Complies with DIN EN 60669-1, VDE 0632 Part 1
  • Module Width: 0.5
  • Available in various configurations: 1 NO/2 NO/3 NO/4 NO


Product

Manufacturer Material ID -
E211-16-20
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365000
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Max. lamp power -
- Watt
Lamp type -
UN
Rated switching capacity -
- kiloampere
Lamp socket -
UN
Built-in depth -
68 Millimetre
Colour calotte -
Grey
Forced segregation (according to DIN VDE 0113) -
Degree of protection (IP) -
IP20
Colour light source -
Grey
Degree of protection (IP rating) -
IP20
Min. rated voltage -
400 Volt
Number of contacts as normally open contact -
2
Number of poles -
2
Rated current -
16 Ampere
Rated voltage -
400 Volt
Recess depth -
68 Millimetre
Short-circuit breaking capacity (Icw) -
3 kiloampere
Switching function -
Other
Voltage type -
Other
Width in number of modular spacings -
0.5
ABB

Availability On Request

£21.76
